Driver Side Seat Control Switch Connector - C320

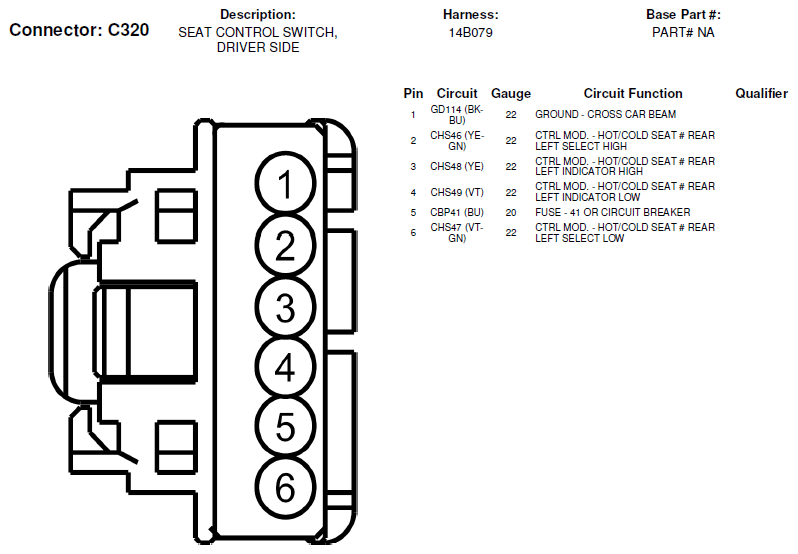

Fig 1: Driver Side Seat Control Switch Connector End View (C320)

G06413338

Courtesy of FORD MOTOR CO.
