Heated Seat Module Connector End View - C3304B

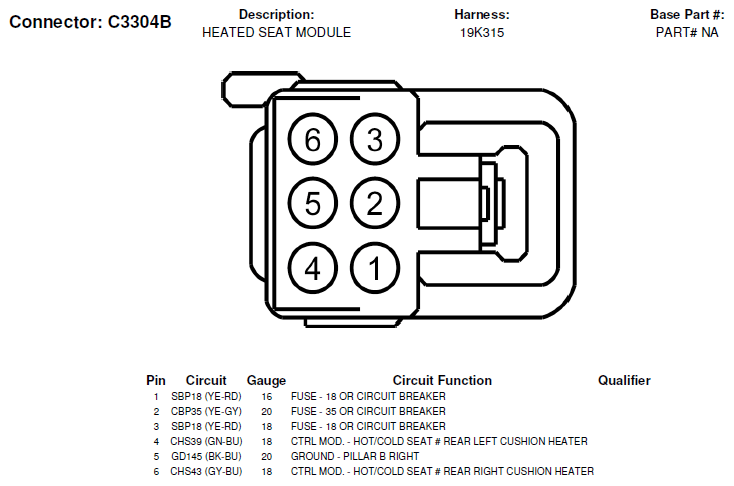

Fig 1: Heated Seat Module Connector End View (C3304B)

G06413591

Courtesy of FORD MOTOR CO.
