Safety Belt Retractor - Second Row and Third Row, Outboard: Notes
Expedition/Navigator
NOTE:
RH shown in illustration, LH similar.

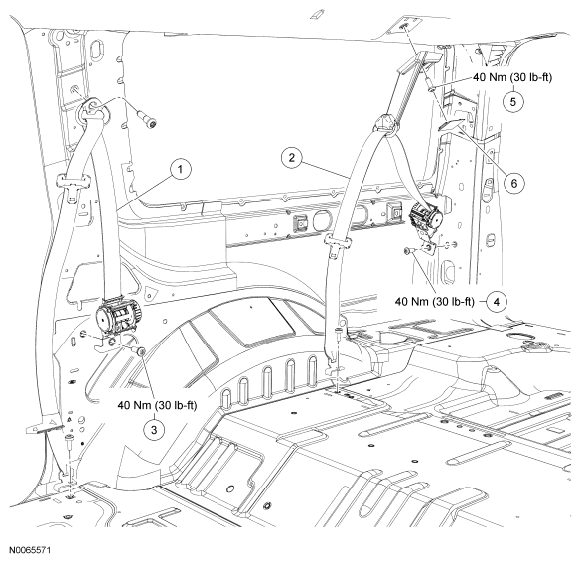

Fig 1: Safety Belt Retractor -- Second Row And Third Row, Outboard With Torque Specifications (Expedition/Navigator)
PART NUMBER REFERENCE
| Item | Part Number | Description |
|---|---|---|
| 1 | 611B68 | Second row safety belt retractor |
| 2 | N807750 | Second row safety belt retractor bolt |
| 3 | W704947 | Second row D-ring bolt |
| 4 | N808774 | Second row safety belt anchor bolt |
| 5 | 611B68 | Third row safety belt retractor |
| 6 | - | Third row D-ring cover |
| 7 | - | Third row D-ring bolt |
| 8 | N808774 | Third row safety belt retractor bolt |
Expedition EL/Navigator L
NOTE:
RH shown in illustration, LH similar.

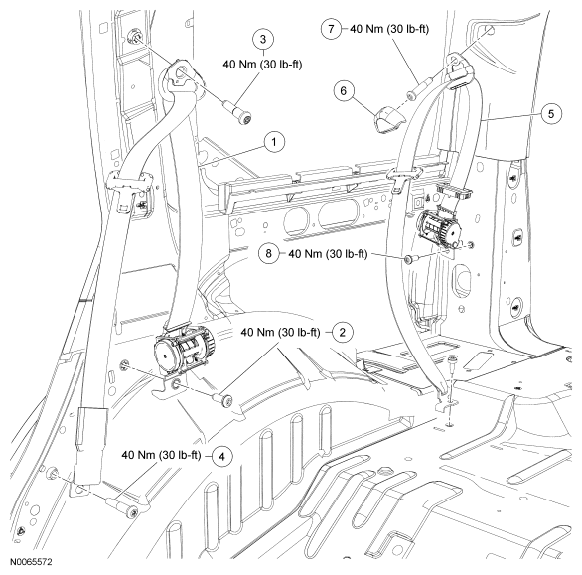

Fig 2: Safety Belt Retractor -- Second Row And Third Row, Outboard With Torque Specifications (Expedition El/Navigator L)
PART NUMBER REFERENCE
| Item | Part Number | Description |
|---|---|---|
| 1 | 611B68 | Second row safety belt retractor |
| 2 | 611B68 | Third row safety belt retractor |
| 3 | N807750 | Second row safety belt retractor bolt |
| 4 | N807750 | Third row safety belt retractor bolt |
| 5 | W713146 | Safety belt sling bolt |
| 6 | 4060262 | Sling bolt cover |
