Special Tool(s)

SPECIAL TOOL SPECIFICATION

Courtesy of FORD MOTOR CO.

Vehicle Communication Module (VCM) and Integrated Diagnostic System (IDS) software with appropriate hardware, or equivalent diagnostic tool

Fig 1: Anti-Lock Brake System (ABS) Module Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION CHART

Item	Part Number	Description
1	-	Air Cleaner (ACL) outlet clamp (part of 9F805)
2	-	Mass Air Flow (MAF) sensor electrical connector (part of 14A464)
3	9661	ACL housing cover

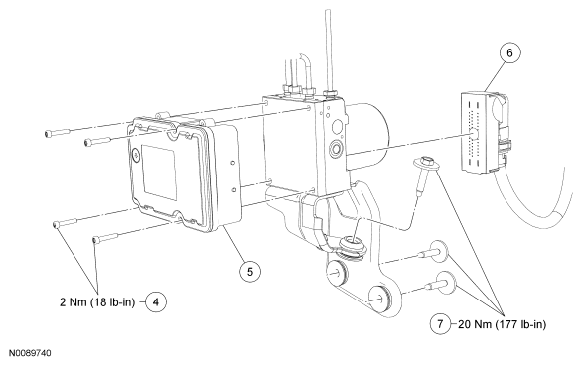

Fig 2: Anti-Lock Brake System (ABS) Module Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION CHART

Item	Part Number	Description
4	W302577	ABS module bolts (4 required)
5	2C219	ABS module
6	-	ABS module electrical connector (part of 14A464)
7	W710309	Hydraulic Control Unit (HCU) bracket-to-frame bolts (3 required)
