Main Control Hydraulic Passage Identification

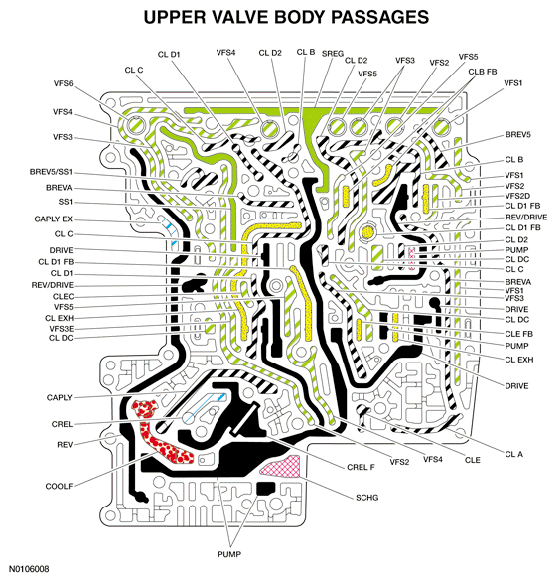

Fig 1: Main Control Hydraulic Passage Identification Chart (1 Of 4)
G06127059Courtesy of FORD MOTOR CO.

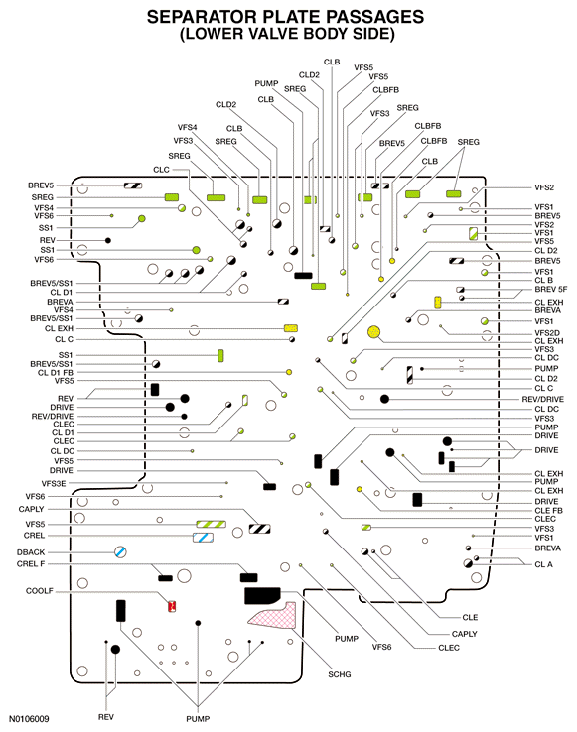

Fig 2: Main Control Hydraulic Passage Identification Chart (2 Of 4)
G06127060Courtesy of FORD MOTOR CO.

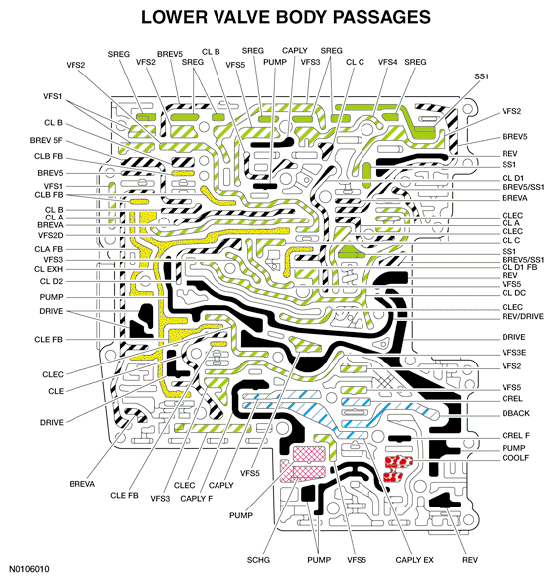

Fig 3: Main Control Hydraulic Passage Identification Chart (3 Of 4)
G06127061Courtesy of FORD MOTOR CO.

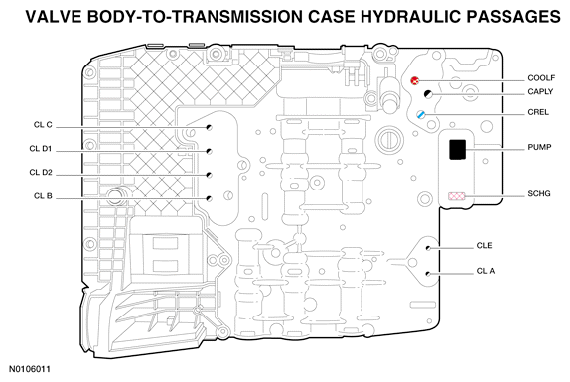

Fig 4: Main Control Hydraulic Passage Identification Chart (4 Of 4)
G06127062Courtesy of FORD MOTOR CO.
