Right Rear Window Control Switch Connector - C819

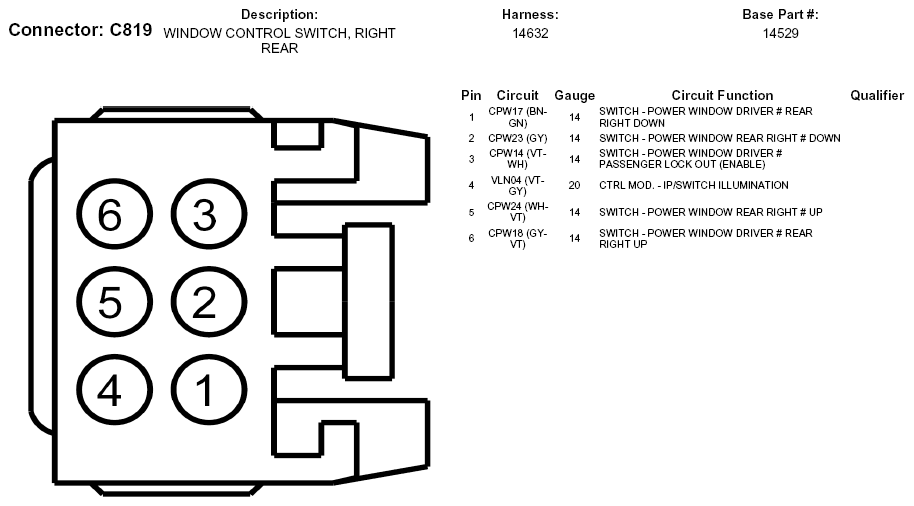

Fig 1: Right Rear Window Control Switch Connector End View (C819)

G05769963

Courtesy of FORD MOTOR CO.
