Mass Air Flow Sensor / Intake Air Temperature Sensor Connector - C1454

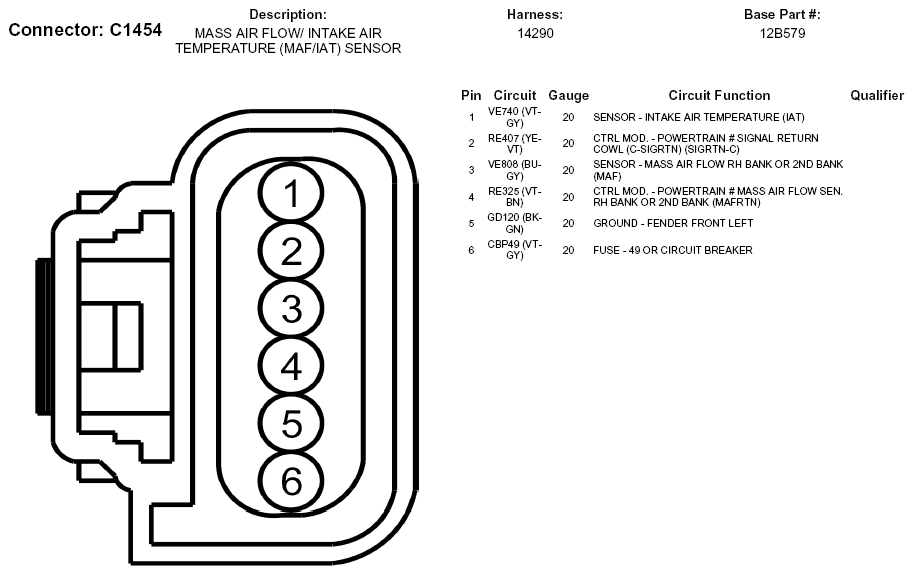

Fig 1: Mass Air Flow Sensor / Intake Air Temperature Sensor Connector End View (C1454)

G05770006

Courtesy of FORD MOTOR CO.
