Ambient Lighting Module Connector - C3251

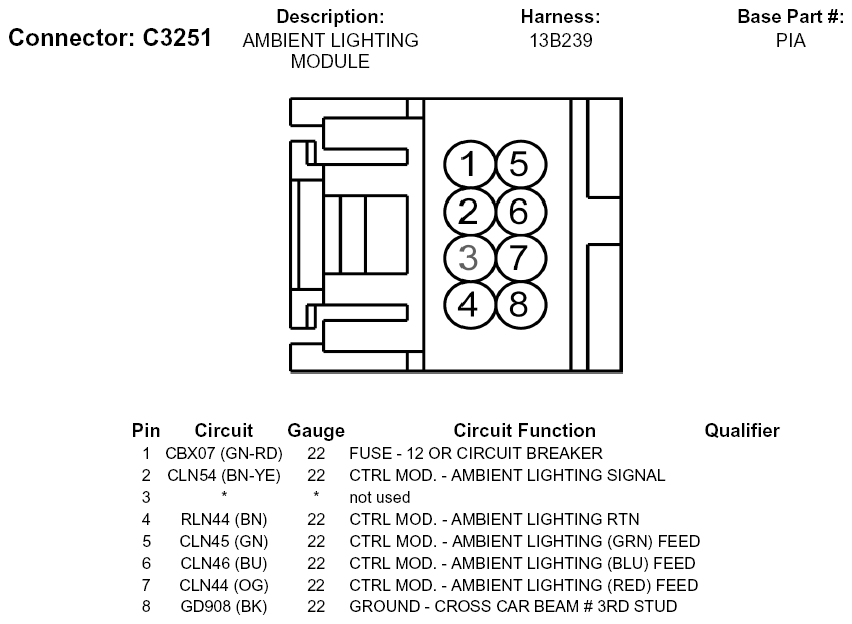

Fig 1: Ambient Lighting Module Connector End View (C3251)

G05770094

Courtesy of FORD MOTOR CO.
