Generator - Diesel Engines, Dual Generators: Notes
WARNING: This page is about a different car, the 2009 Ford RV Cutaway, 2009 Ford Econoline, 2009 Ford E450 Super Duty, and 2009 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
This procedure applies to the secondary generator of the dual generator system.

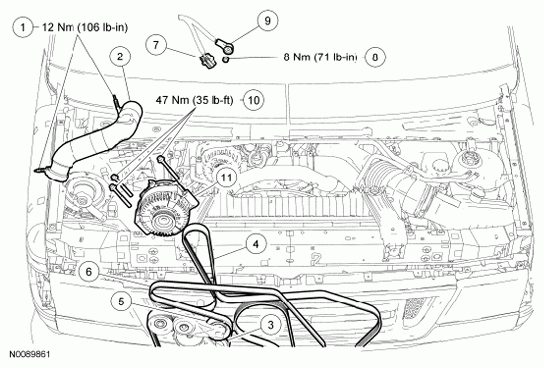

PART DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | 6K786 | Charge Air Cooler (CAC) tube clamps (2 required) |
| 2 | 6K769 | CAC tube |
| 3 | 6B209 | Accessory drive belt tensioner (primary) |
| 4 | 8620 | Accessory drive belt (primary) |
| 5 | 6B209 | Accessory drive belt tensioner (secondary) |
| 6 | 8620 | Accessory drive belt (secondary |
| 7 | - | Generator electrical connector (part of 14B060) |
| 8 | - | Generator B+ terminal nut (part of 14B060) |
| 9 | - | Generator B+ terminal (part of 14305) |
| 10 | N606068 | Generator bolts (3 required) |
| 11 | 10300 | Generator |
