Driver Side Seat Control Switch Connector - C320

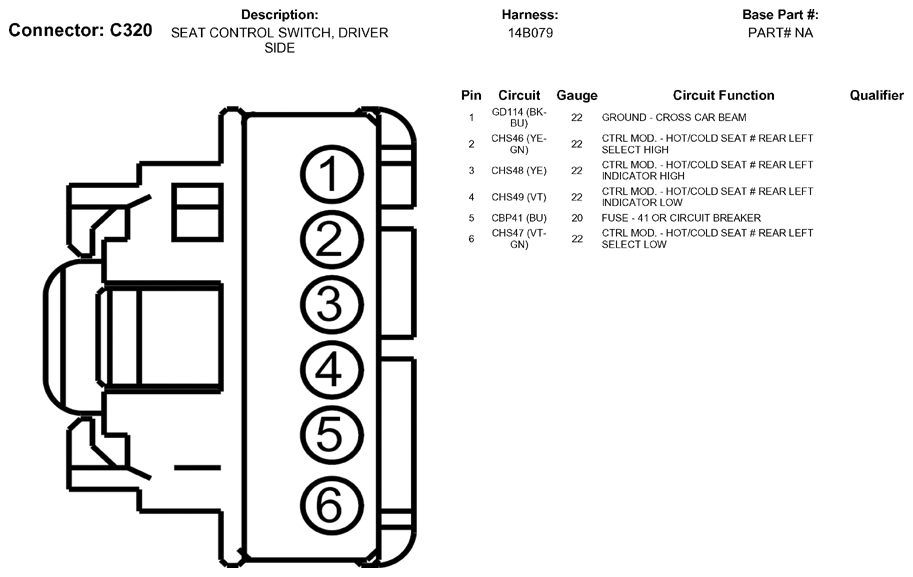

Fig 1: Driver Side Seat Control Switch Connector End View (C320)

G05785893

Courtesy of FORD MOTOR CO.
