Safety Belt Shoulder Height Adjuster: Notes

NOTE: RH shown in illustration, LH similar.

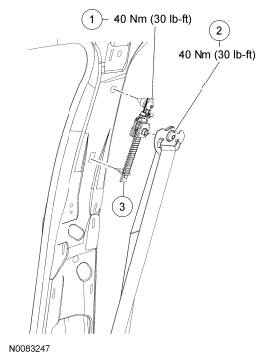

Fig 1: Safety Belt Shoulder Height Adjuster Replacement Components With Torque Specifications

Courtesy of FORD

ITEM DESCRIPTION

Item	Part Number	Description
1	-	Safety belt shoulder height adjuster bolt (part of 602B82)
2	W713089	D-ring bolt
3	602B82	Safety belt shoulder height adjuster
