Occupant Classification Sensor 1 Connector - C3324

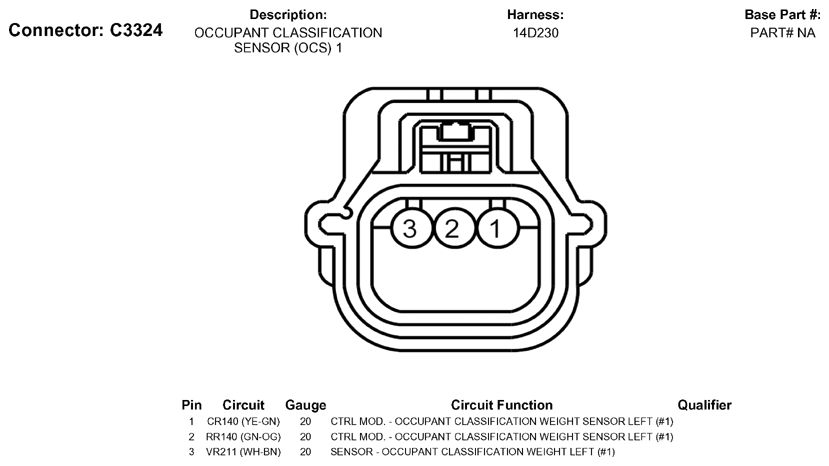

Fig 1: Occupant Classification Sensor 1 Connector End View (C3324)

G05786103

Courtesy of FORD MOTOR CO.
