Home >> Lincoln >> 2009 >> MKS AWD >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM Connector End Views >> Connector Views >> Passenger Side Window Control Switch Connector - C604

Passenger Side Window Control Switch Connector - C604

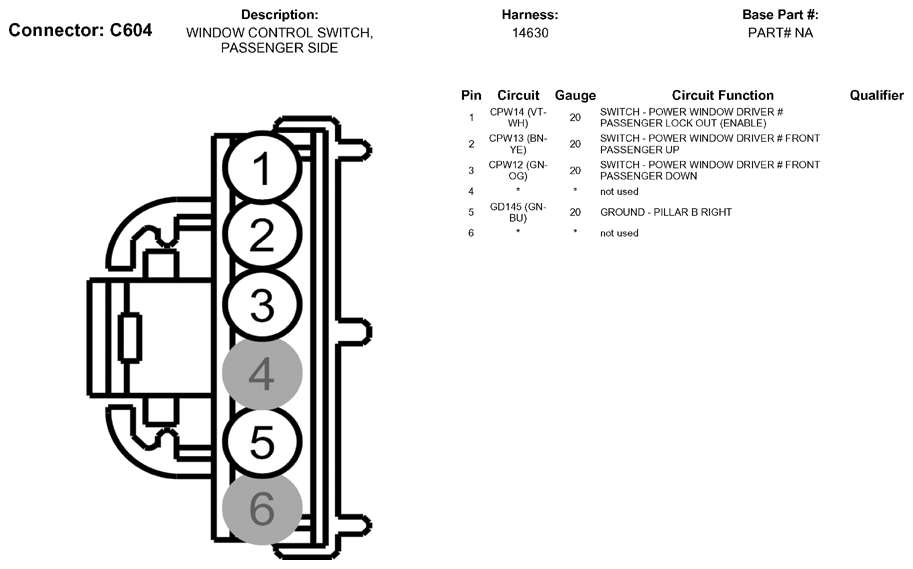

Fig 1: Passenger Side Window Control Switch Connector End View (C604)

G05785954

Courtesy of FORD MOTOR CO.
