Rear View Camera Display Mirror Connector

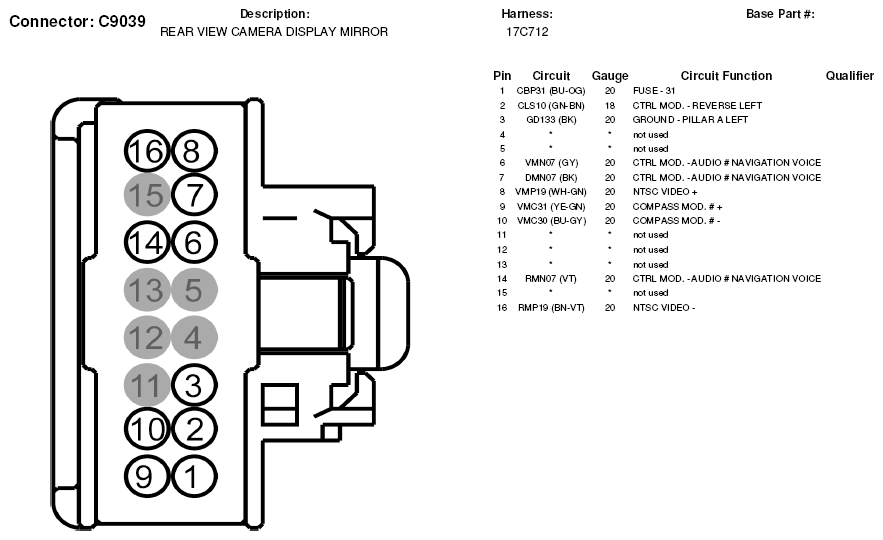

Fig 1: Rear View Camera Display Mirror Connector End View (C9039)

G05600150
