Left Headlamp Assembly Connector
Left Headlamp Assembly Connector

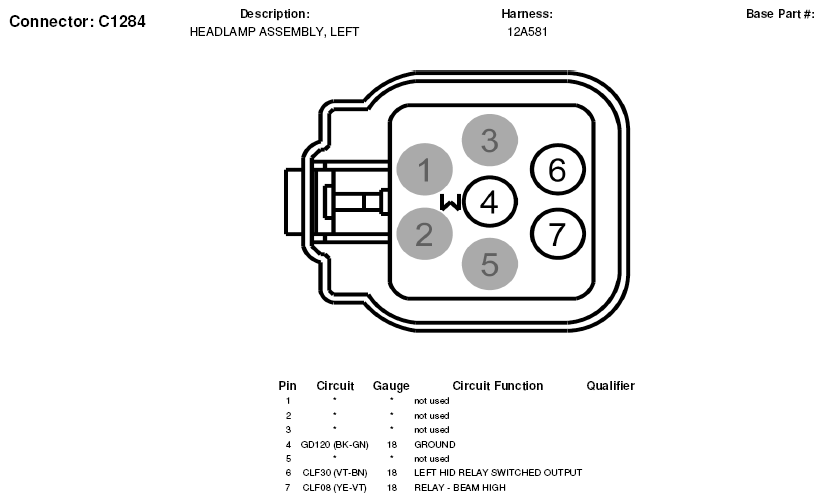

Fig 1: Left Headlamp Assembly Connector End View (C1284)
