Powertrain Control Module Connector End View - C175E

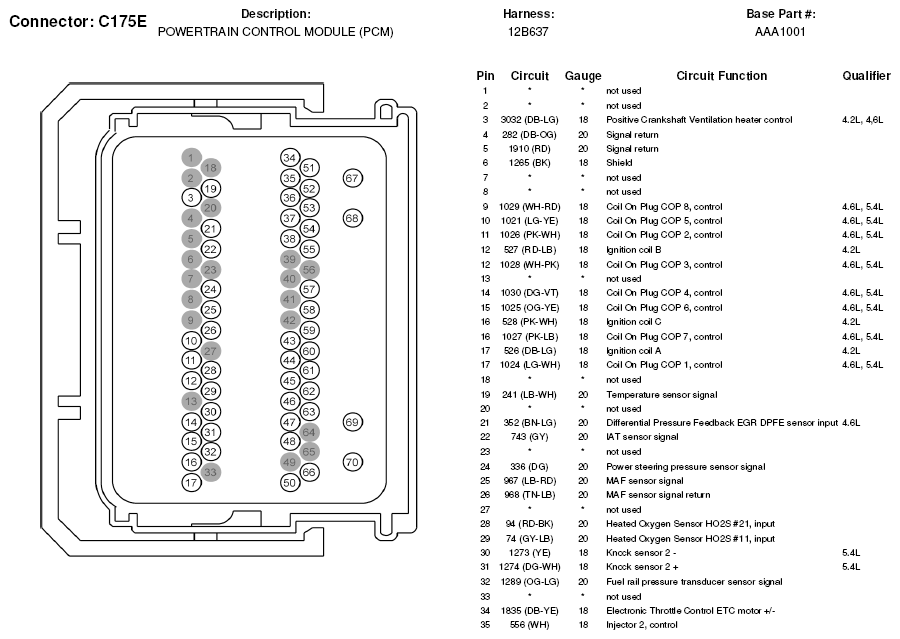

Fig 1: Powertrain Control Module Connector End View (C175E) (1 Of 2)
G05601481Courtesy of FORD MOTOR CO.

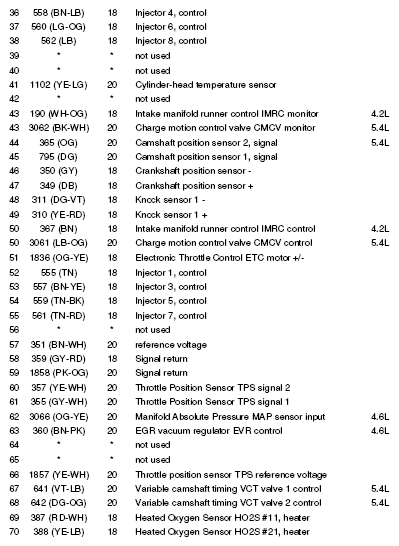

Fig 2: Powertrain Control Module Connector End View (C175E) (2 Of 2)
G05601482Courtesy of FORD MOTOR CO.
