Powertrain Control Module Connector End View - C175B

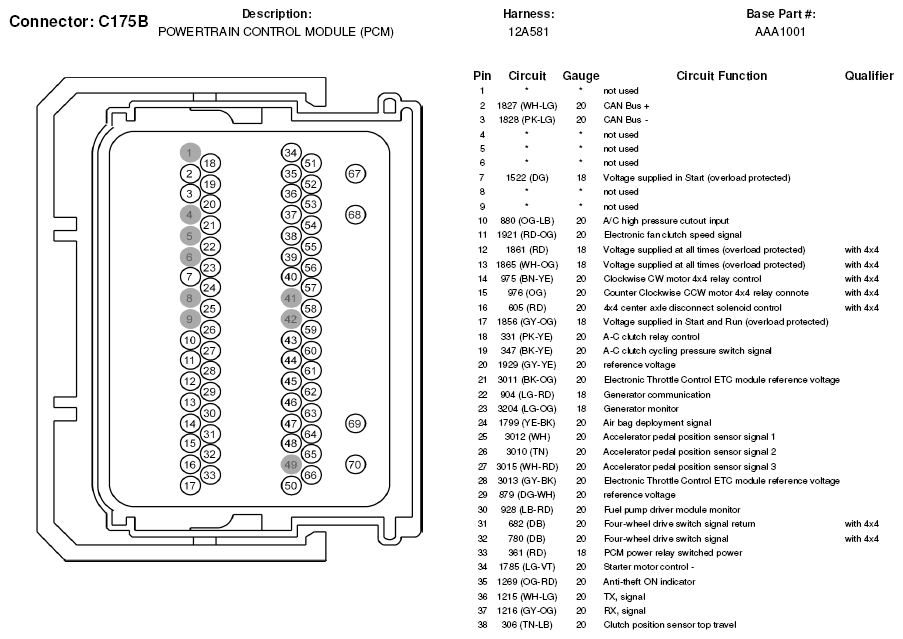

Fig 1: Powertrain Control Module Connector End View (C175B)

G05601479

Courtesy of FORD MOTOR CO.
