Passenger Side Air Curtain Module Connector

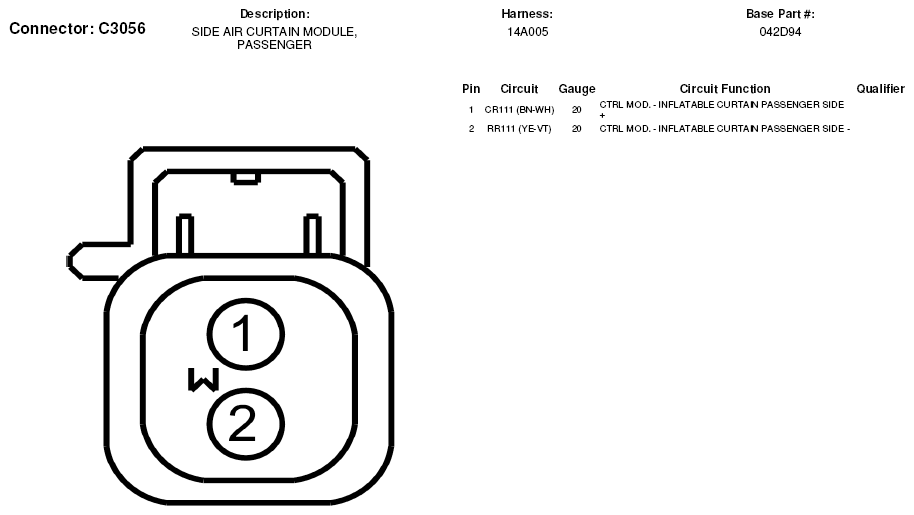

Fig 1: Passenger Side Air Curtain Module Connector End View (C3056)

G05602674
