Manifold Absolute Pressure Sensor Connector

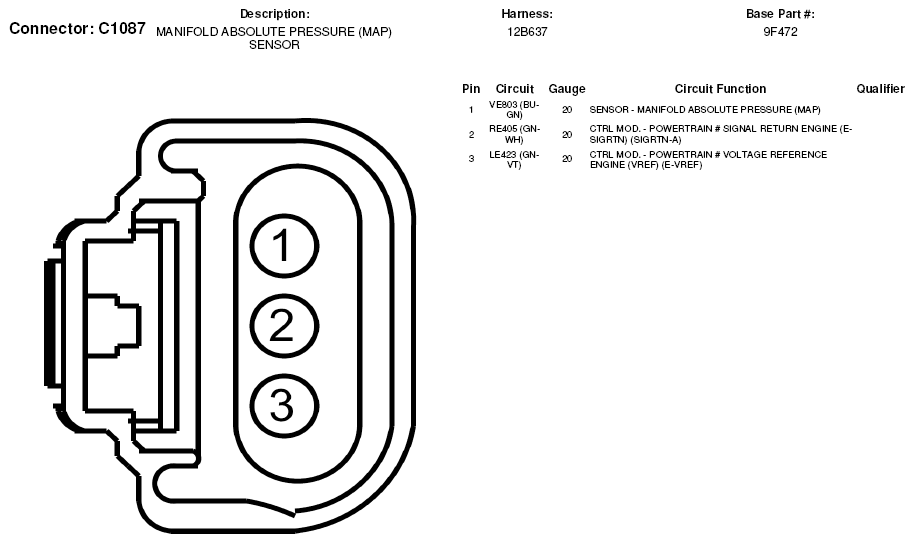

Fig 1: Manifold Absolute Pressure Sensor Connector End View (C1087)

G05602584

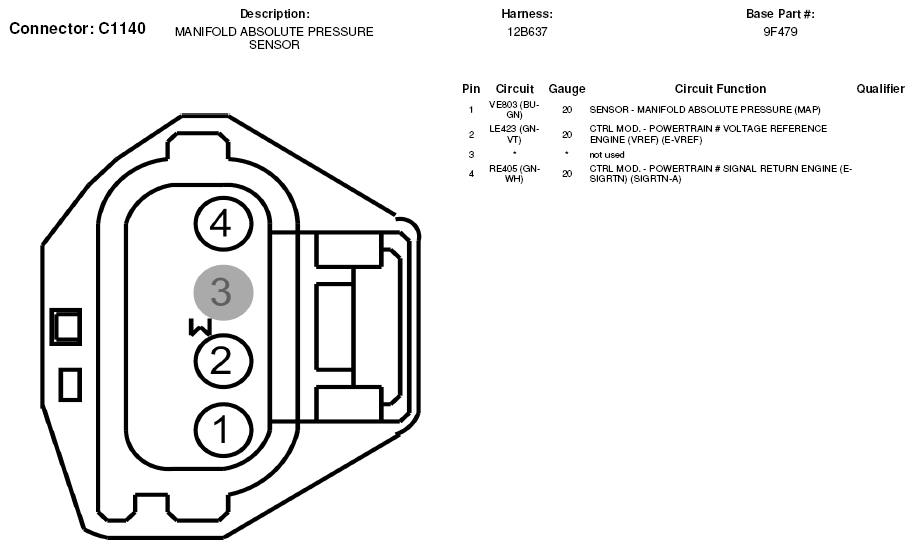

Fig 2: Manifold Absolute Pressure Sensor Connector End View (C1140)

G05602594
