Active Torque Control Coupling Solenoid Connector

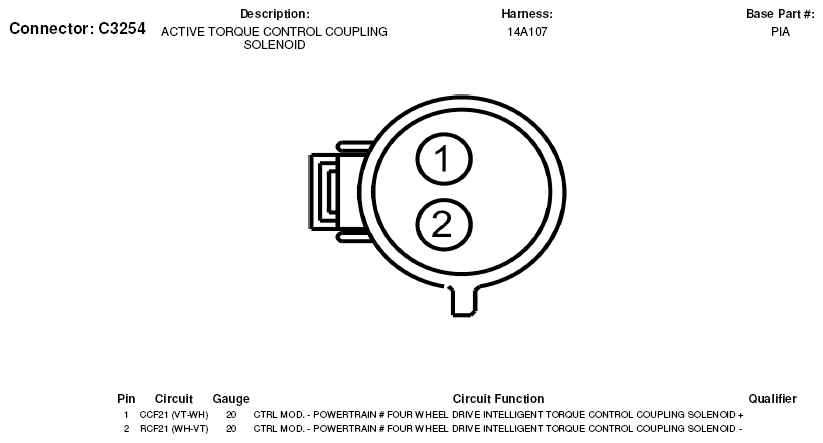

Fig 1: Active Torque Control Coupling Solenoid Connector End View (C3254)

G05602699
