Driver Seat Horizontal Motor Connector

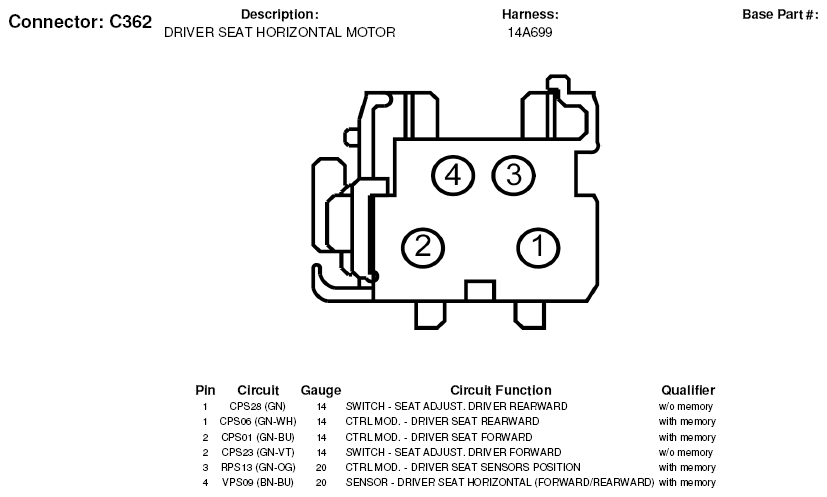

Fig 1: Driver Seat Horizontal Motor Connector End View (C362)

G05598885
