Brake Shift Interlock Actuator: Notes

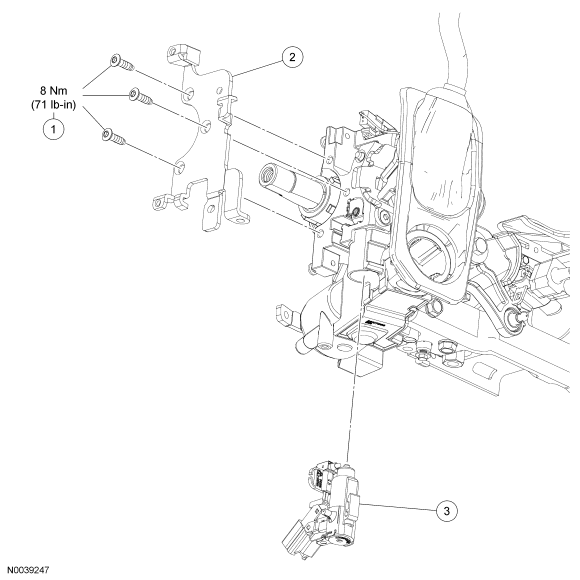

Fig 1: Exploded View Of Column Shift Brake Shift Interlock Actuator With Torque Specifications
GF0014152Courtesy of FORD MOTOR CO.
Item Part Number Description
1 3F907 Clockspring mounting bracket bolts
2 3678 Clockspring mounting bracket
3 3F770 Shift lock actuator
