Safety Belt Retractor - Second Row and Third Row, Outboard: Notes
NOTE:
RH shown, LH similar.

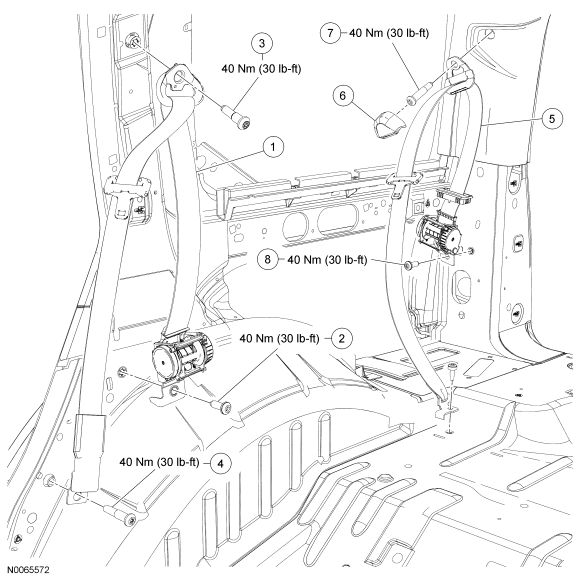

Fig 1: Exploded View Of Second Row & Third Row Outboard Safety Belt Retractor With Torque Specifications (Expedition/Navigator)
| Item | Part Number | Description |
|---|---|---|
| 1 | 611B68 | Second row, safety belt retractor |
| 2 | N807750 | Bolt, second row safety belt retractor |
| 3 | W704947 | Bolt, second row D-ring |
| 4 | N808774 | Bolt, second row safety belt anchor |
| 5 | 611B68 | Third row, safety belt retractor |
| 6 | - | D-ring cover, third row |
| 7 | - | Bolt, third row D-ring |
| 8 | N808774 | Bolt, third row safety belt retractor |
NOTE:
RH shown, LH similar.

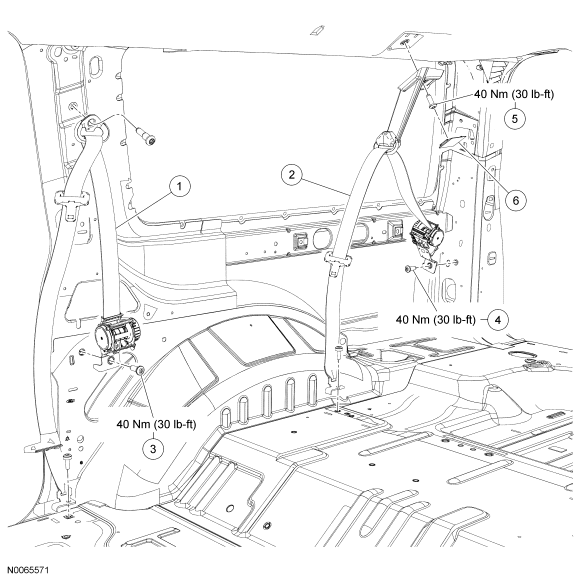

Fig 2: Exploded View Of Second Row & Third Row Outboard Safety Belt Retractor With Torque Specifications (Expedition EL/Navigator L)
| Item | Part Number | Description |
|---|---|---|
| 1 | 611B68 | Second row, safety belt retractor |
| 2 | 611B68 | Third row, safety belt retractor |
| 3 | N807750 | Bolt, second row safety belt retractor |
| 4 | N807750 | Bolt, third row safety belt retractor |
| 5 | W713146 | Bolt, third row safety belt sling |
| 6 | 4060262 | Cover, sling bolt |
NOTE:
RH shown, LH similar.

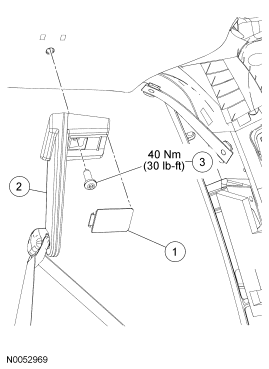

Fig 3: Exploded View Of Third Row Safety Belt Retractor Sling With Torque Specifications (Expedition EL/Navigator L)
| Item | Part Number | Description |
|---|---|---|
| 1 | 4060262 | Cover, sling |
| 2 | W713146 | Bolt, third row safety belt sling |
| 3 | - | Third row safety belt sling (part of 611B68) |
