Front Blower Motor Connector

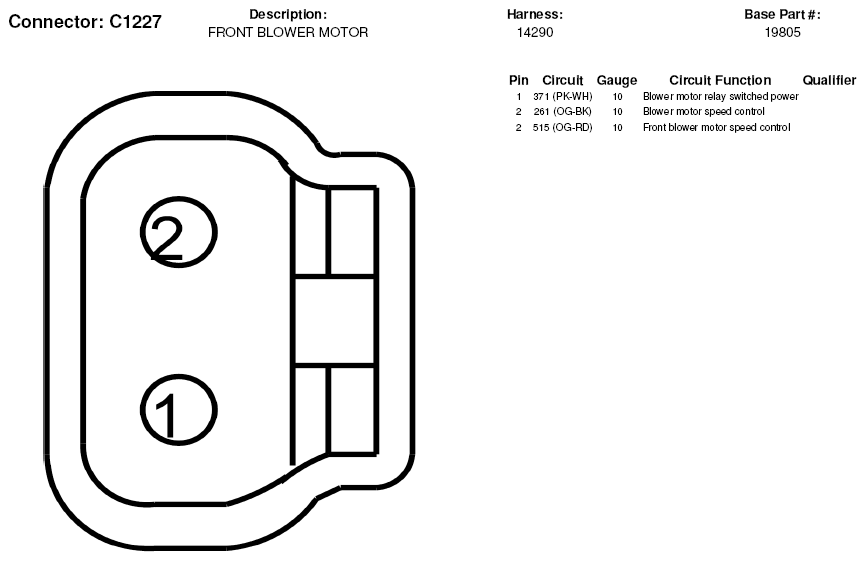

Fig 1: Front Blower Motor Connector End View (C1227)

G05179278

Courtesy of FORD MOTOR CO.
