Power Steering Pressure Switch Connector

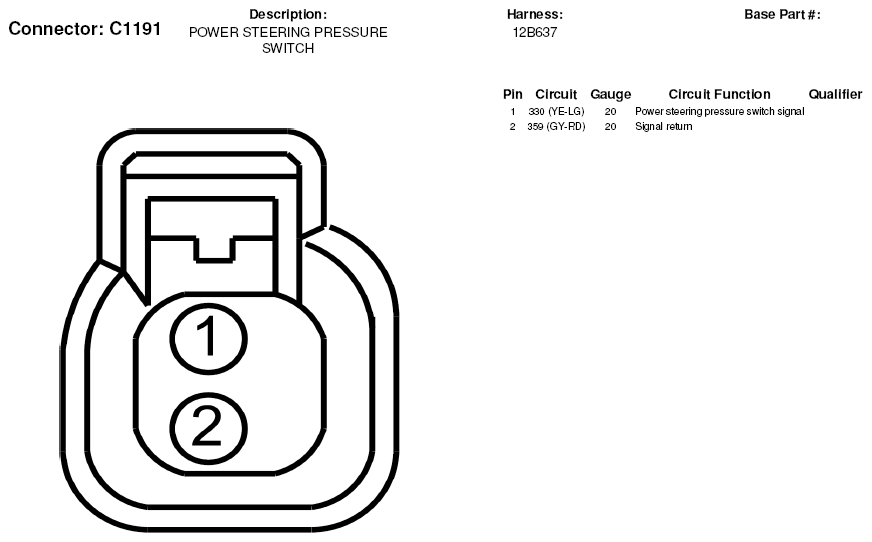

Fig 1: Power Steering Pressure Switch Connector End View (C1191)

G05179275

Courtesy of FORD MOTOR CO.
