Transaxle Support Insulator: Installation

All vehicles

  1. Clean the rear transaxle support insulator bolts using a wire brush and apply new threadlock to the threads.
  2. NOTE: 3.0L engine shown, 3.5L engine similar.
  3. Position the transaxle support insulator in place and install the 2 upper bolts.
    • Tighten to 62 Nm (46 lb-ft).
  4. Fig 1: Locating Upper Bolts On Rear Transaxle Insulator
    GF0029645Courtesy of FORD MOTOR CO.

    3.5L engine

  5. Install the transaxle support insulator through bolt.
    • Tighten to 130 Nm (96 lb-ft).
  6. Fig 2: Identifying Transaxle Support Insulator Through Bolt
    GF0029155Courtesy of FORD MOTOR CO.
  7. Remove the floor jack and the special tool.
  8. Fig 3: Positioning Floor Jack & Special Tool (303-1295) Under Oil Pan
    GF0029124Courtesy of FORD MOTOR CO.
  9. Install the air cleaner. For additional information, refer to ENGINE - 3.5L .
  10. Install the exhaust Y-pipe. For additional information, refer to EXHAUST SYSTEM
  11. All vehicles

  12. Position the transaxle support insulator in place and install the 2 lower bolts.
    • Tighten to 62 Nm (46 lb-ft).
  13. Fig 4: Locating Bolts On Rear Transaxle Insulator
    GF0029641Courtesy of FORD MOTOR CO.
  14. Position the LH front structure-to-subframe splash shield in place and install the 6 pin-type retainers.
  15. Fig 5: Locating LH Front Structure-To-Subframe Splash Shield
    GF0029640Courtesy of FORD MOTOR CO.
  16. Position the LH splash shield in place and install the 4 screws.
  17. Fig 6: Locating LH Fender Splash Shield Screws
    GF0029639Courtesy of FORD MOTOR CO.

    3.0L engine

  18. Install the 2 transaxle support insulator bolts.
    • Tighten to 90 Nm (66 lb-ft).
  19. Fig 7: Locating Transaxle Insulator Bolts
    GF0029644Courtesy of FORD MOTOR CO.
  20. Remove the special tools.

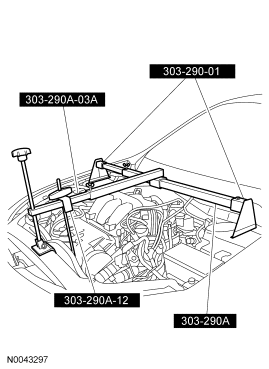

  21. Fig 8: Supporting Engine Using Special Tools (303-290A, 303-290-01, 303-290A-12, 303-290A-03A)
    GF0029643Courtesy of FORD MOTOR CO.
  22. Remove the Universal Lifting Brackets from the LH side of the engine.
  23. Fig 9: Identifying Universal Lifting Brackets
    GF0029642Courtesy of FORD MOTOR CO.

    All vehicles

  24. Install the battery and battery tray. For additional information, refer to BATTERY, MOUNTING AND CABLES .
