Safety Belt Buckle - Front: Notes

NOTE: LH shown, RH similar.

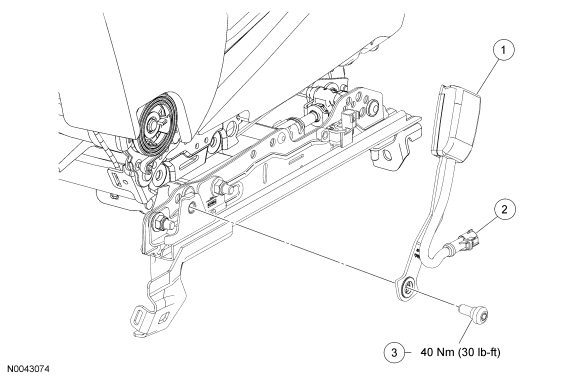

Fig 1: Exploded View Of Front Safety Belt Buckle With Torque Specification
GF0028560Courtesy of FORD MOTOR CO.
Item Part Number Description
1 61203 LH/ 61202 RH Safety belt buckle
2 - Electrical connector
3 - Bolt (part of 61203 LH/ 61202 RH)
