Speaker Assembly Connector

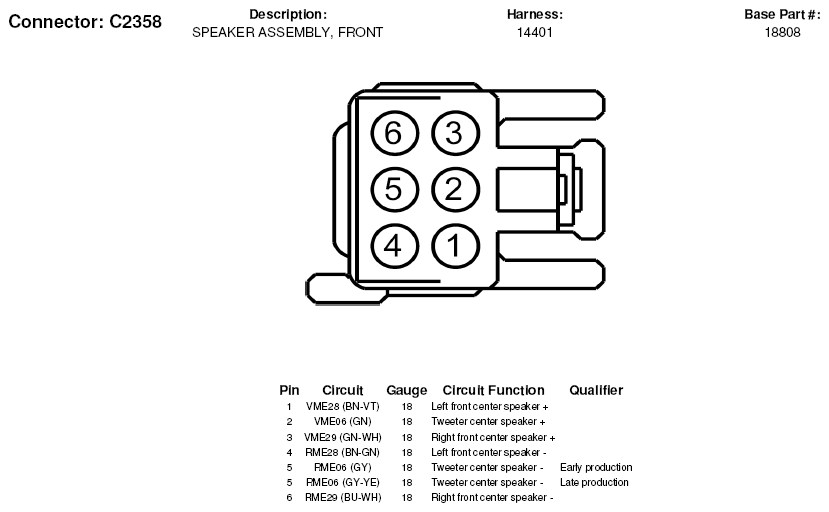

Fig 1: Speaker Assembly Connector End View (C2358)

G05180844

Courtesy of FORD MOTOR CO.
