Side Lamp Connector

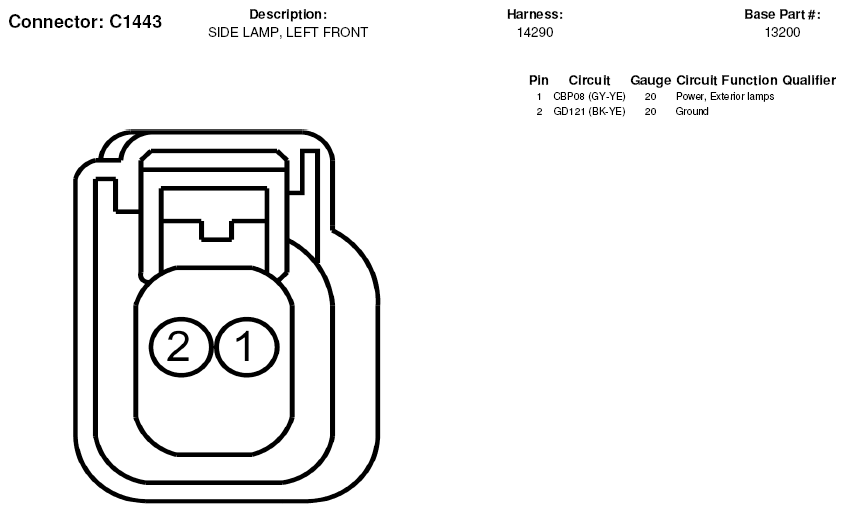

Fig 1: Side Lamp Connector End View (C1443)
G05180789Courtesy of FORD MOTOR CO.

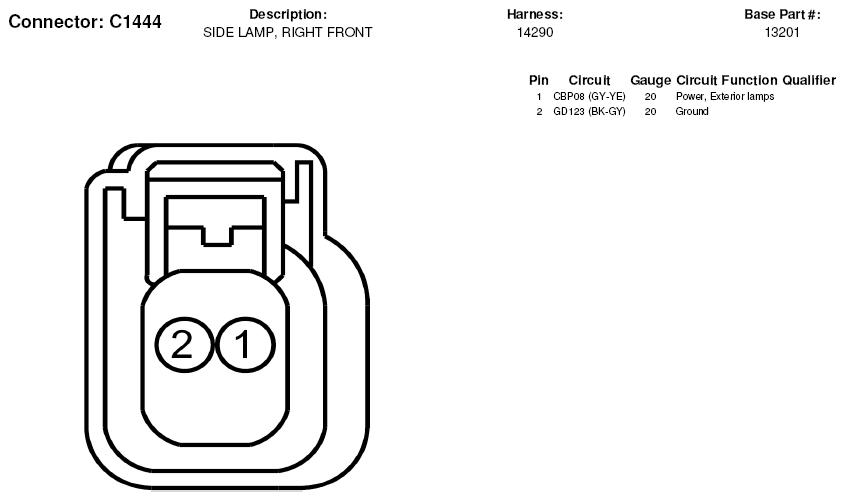

Fig 2: Side Lamp Connector End View (C1444)
G05180790Courtesy of FORD MOTOR CO.

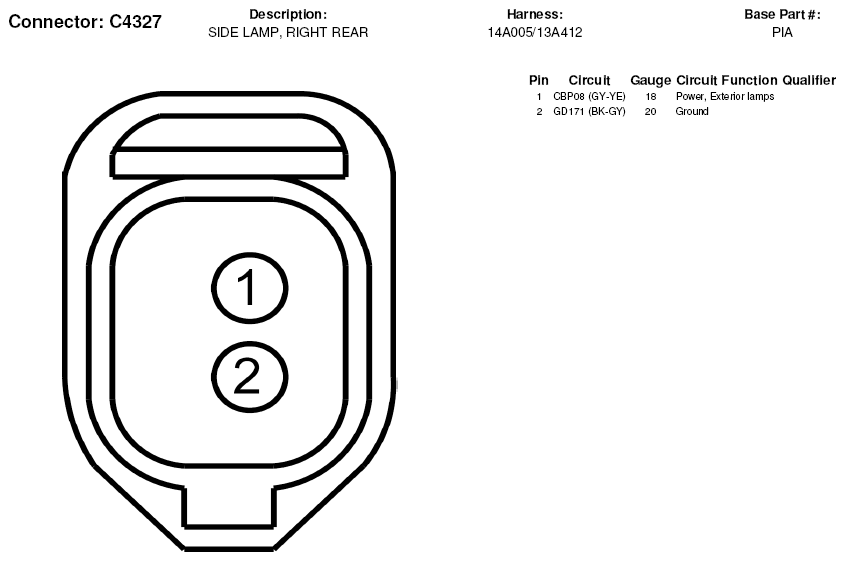

Fig 3: Side Lamp Connector End View (C4327)
G05180912Courtesy of FORD MOTOR CO.

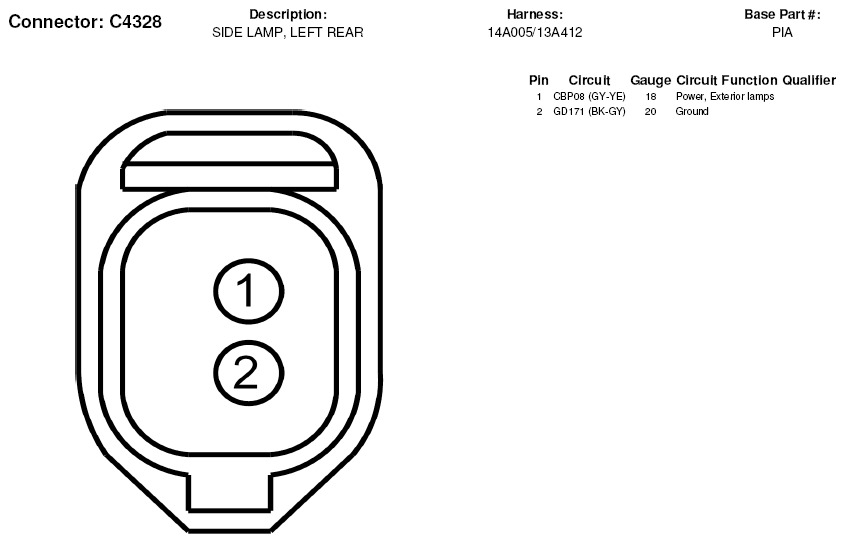

Fig 4: Side Lamp Connector End View (C4328)
G05180913Courtesy of FORD MOTOR CO.
