Satellite Radio Receiver Connector

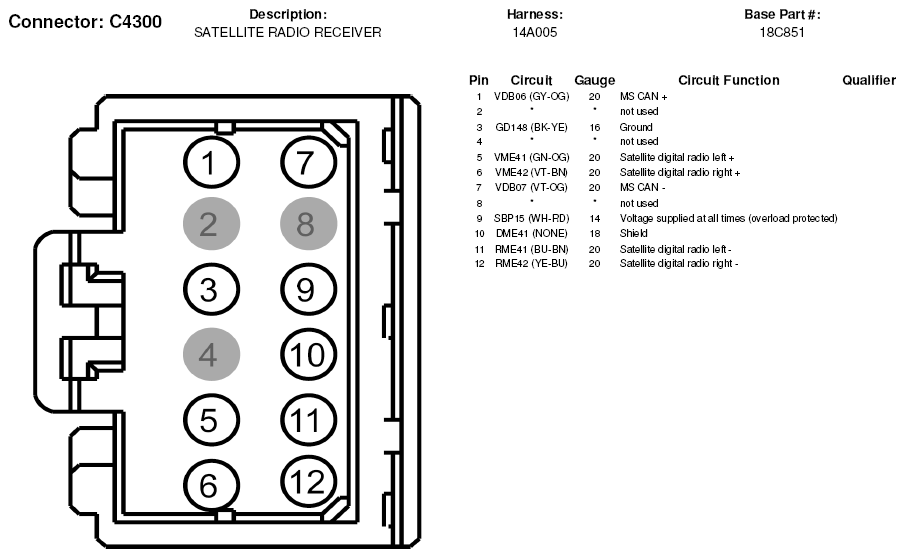

Fig 1: Satellite Radio Receiver Connector End View (C4300)

G05180907

Courtesy of FORD MOTOR CO.
