Power Window Motor Connectors

Fig 1: Power Window Motor Connector End View (C518)
G05180714Courtesy of FORD MOTOR CO.
Fig 2: Power Window Motor Connector End View (C540)
G05180722Courtesy of FORD MOTOR CO.

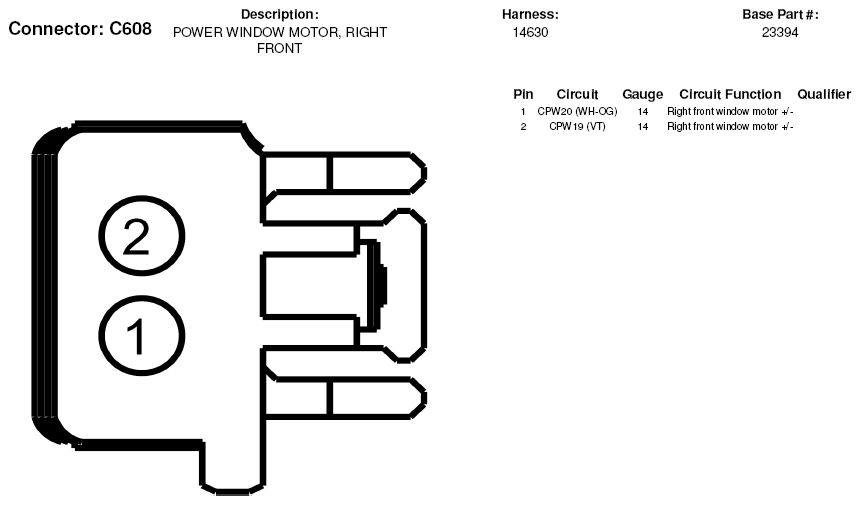

Fig 3: Power Window Motor Connector End View (C608)
G05180729Courtesy of FORD MOTOR CO.

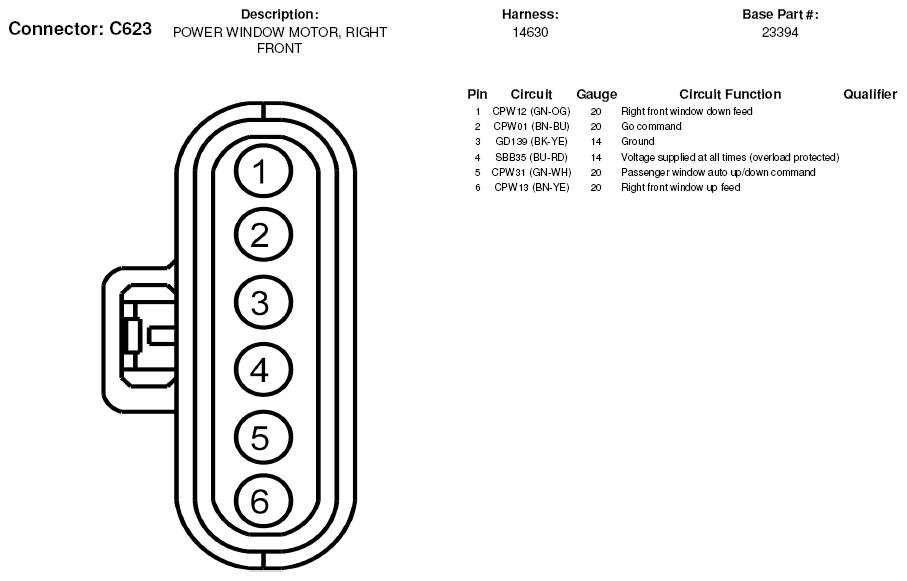

Fig 4: Power Window Motor Connector End View (C623)
G05180735Courtesy of FORD MOTOR CO.
Fig 5: Power Window Motor Connector End View (C726)
G05180744Courtesy of FORD MOTOR CO.
Fig 6: Power Window Motor Connector End View (C828)
G05180749Courtesy of FORD MOTOR CO.
