Lamp Assembly Connectors

Fig 1: Lamp Assembly Connector End View (C414A)
G05180678Courtesy of FORD MOTOR CO.
Fig 2: Lamp Assembly Connector End View (C414B)
G05180679Courtesy of FORD MOTOR CO.
Fig 3: Lamp Assembly Connector End View (C414C)
G05180680Courtesy of FORD MOTOR CO.

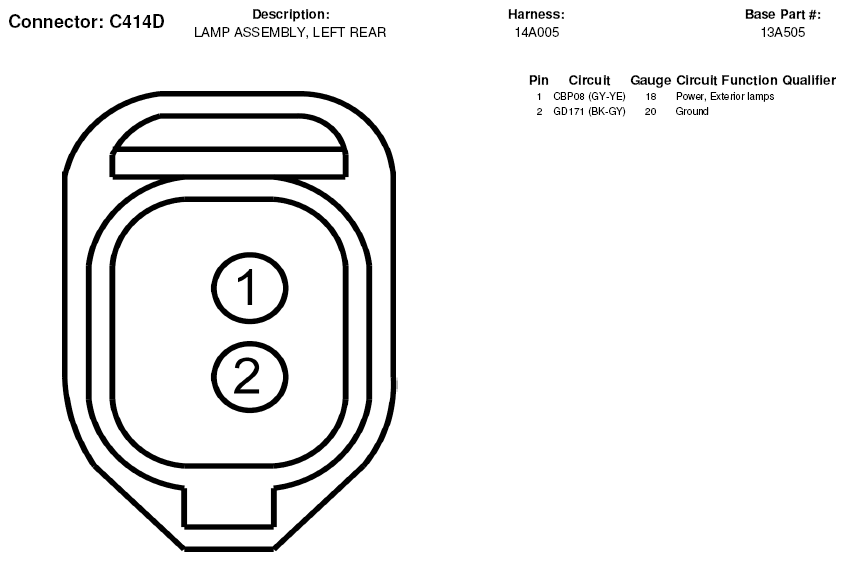

Fig 4: Lamp Assembly Connector End View (C414D)
G05180681Courtesy of FORD MOTOR CO.
Fig 5: Lamp Assembly Connector End View (C417A)
G05180683Courtesy of FORD MOTOR CO.

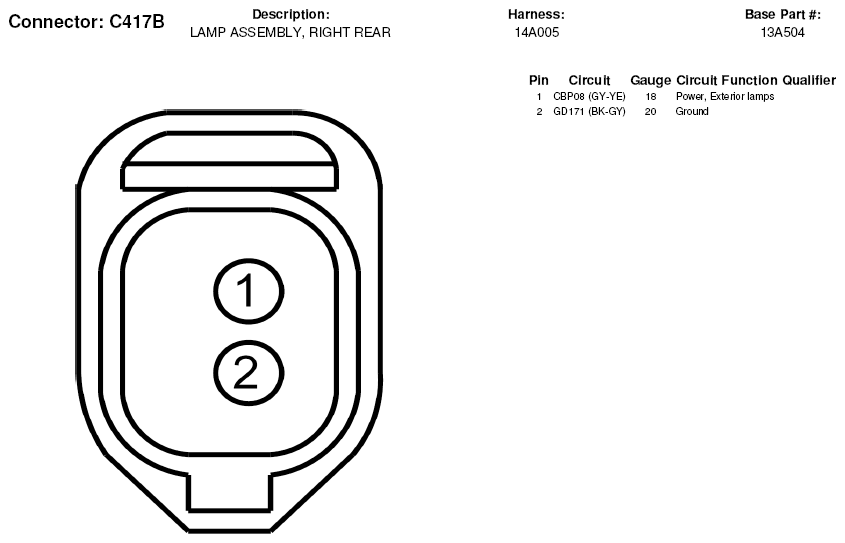

Fig 6: Lamp Assembly Connector End View (C417B)
G05180684Courtesy of FORD MOTOR CO.
Fig 7: Lamp Assembly Connector End View (C417C)
G05180685Courtesy of FORD MOTOR CO.
Fig 8: Lamp Assembly Connector End View (C417D)
G05180686Courtesy of FORD MOTOR CO.
