Ignition Transformer Capacitor Connector

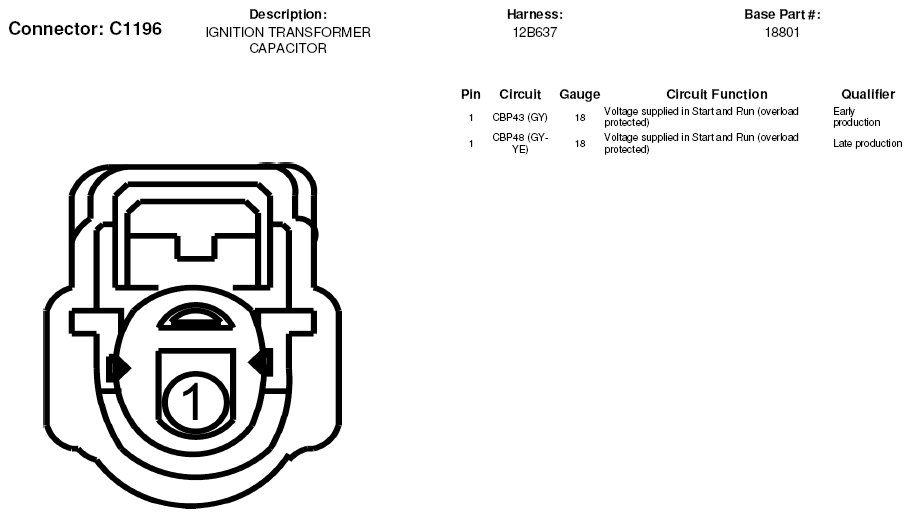

Fig 1: Ignition Transformer Capacitor Connector End View (C1196)

G05180784

Courtesy of FORD MOTOR CO.
