Front Impact Severity Sensor Connectors

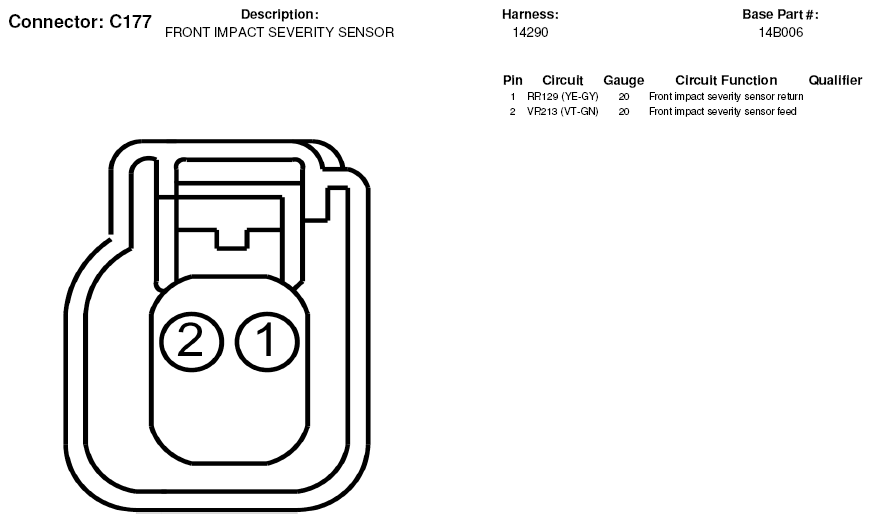

Fig 1: Front Impact Severity Sensor Connector End View (C177)

G05180590

Courtesy of FORD MOTOR CO.
