Home >> Lincoln >> 2006 >> Town Car Protection Series, 4.6 W >> Repair and Diagnosis >> Restraints >> Restraints Control Systems >> Safety Belt System >> Removal And Installation >> Child Safety Seat Tether Anchor - LATCH >> Notes

Child Safety Seat Tether Anchor - LATCH: Notes

NOTE: RH shown, LH similar.

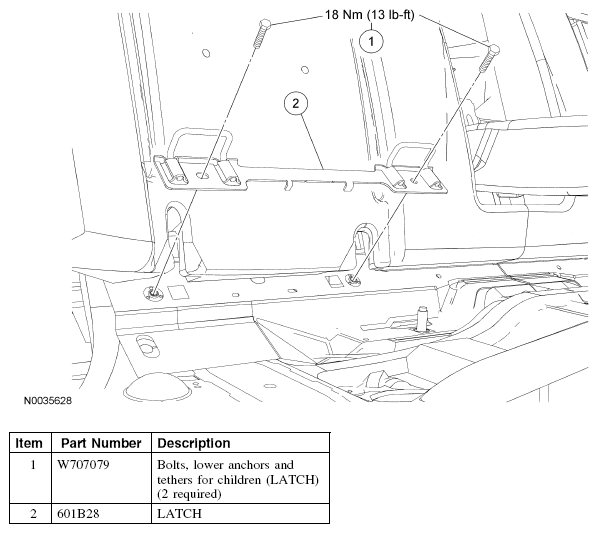

Fig 1: Child Safety Seat Tether Anchor -- LATCH Replacement Components - With Torque Specifications

G04708151
