Exhaust System - Exploded View
Exhaust System - Exploded View

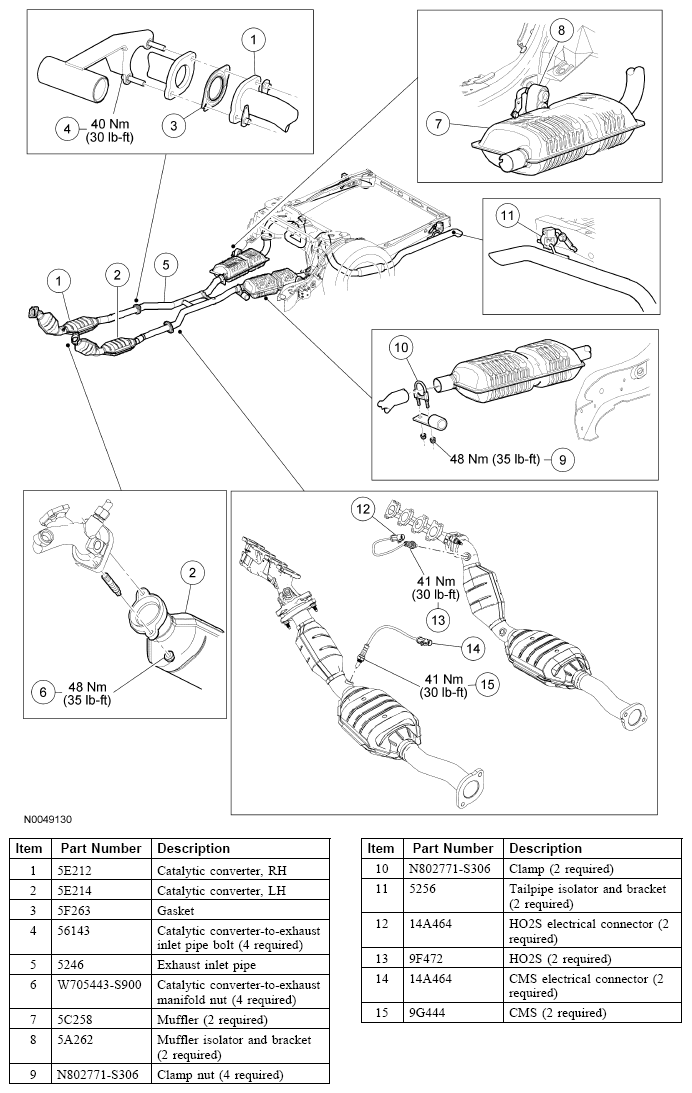

Fig 1: Exploded View Of Dual Exhaust System - With Torque Specifications
For additional information, refer to the appropriate procedures in this article.
