Throttle Body: Notes

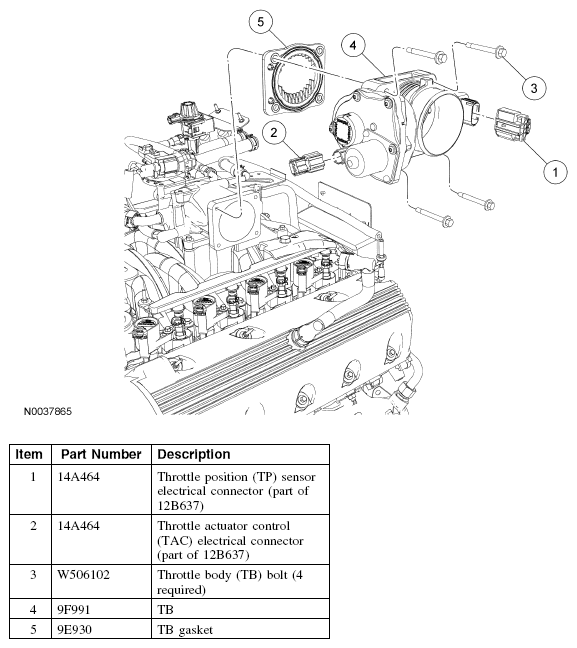

Fig 1: Identifying Throttle Body Components
G04705806Courtesy of FORD MOTOR CO.
