Exhaust Gas Recirculation (EGR) System Module Tube: Notes

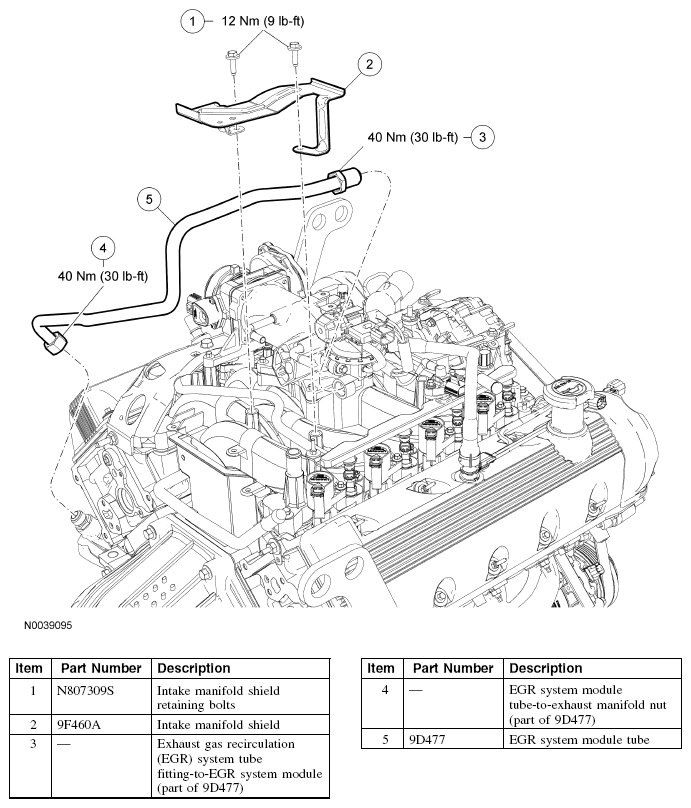

Fig 1: Exhaust Gas Recirculation (EGR) System Module Tube Replacement Components With Torque Specifications

G04705859

Courtesy of FORD MOTOR CO.
