Pinpoint Test D: The Transmission Control (TC) Switch Does Not Operate Correctly

  1. D1 CHECK FUSE F8 (10A)
    • Check fuse: CJB Fuse F8 (10A).
    • Is the resistance less than 5 ohms?

    Yes  : GO to  D3.

    No  : GO to D2.

  2. D2 CHECK CIRCUIT 640 (RD/YE) FOR A SHORT TO GROUND
    • Key in OFF position.
    • Disconnect: CJB Fuse F8 (10A).
    • Measure the resistance between the output side of fuse F8 (10A) and ground.

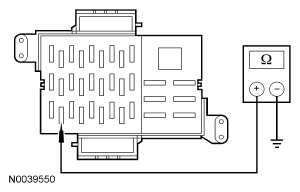

      Fig 1: Checking Circuit 640 (RD/YE) For Short To Ground
      G04706538
    • Is the resistances greater than 10,000 ohms?

    Yes  : GO to  D4.

    No  : REPAIR circuit 640 (RD/YE). REINSTALL all components. TEST the system for normal operation.

  3. D3 CHECK CIRCUIT 640 (RD/YE) FOR AN OPEN
    • Key in OFF position.
    • Disconnect: CJB Fuse F8 (10A).
    • Disconnect: Transmission Control (TC) Switch C279.
    • Measure the resistance between the output side of fuse F8 (10A) and TC switch C279-1.

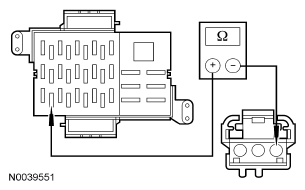

      Fig 2: Checking Circuit 640 (RD/YE) For Open
      G04706539
    • Is the resistance less than 5 ohms?

    Yes  : GO to  D5.

    No  : REPAIR circuit 640 (RD/YE). RECONNECT all components. TEST the system for normal operation.

  4. D4 CHECK SELECTOR LEVER HARNESS FOR A SHORT TO GROUND
    • Key in OFF position.
    • Disconnect: Transmission Control (TC) Switch C279.
    • Measure the resistance between TC switch C279-1 and ground while cycling the TC switch.
      Fig 3: Checking Selector Lever Harness For Short To Ground
      G04706540
    • Is the resistance greater than 10,000 ohms?

    Yes  : GO to  D6.

    No  : INSTALL a new selector lever. REFER to SELECTOR LEVER  in this article. RECONNECT all components. TEST the system for normal operation.

  5. D5 CHECK THE TRANSMISSION CONTROL (TC) SWITCH
    • Key in OFF position.
    • Measure the resistance between TC switch C279-1 and C279-2 while cycling the TC switch.
      Fig 4: Checking Transmission Control Switch
      G04706541
    • Does the resistance change from less than 5 ohms to greater than 10,000 ohms?

    Yes  : GO to  D7.

    No  : INSTALL a new TC switch. REFER to SELECTOR LEVER  in this article. REINSTALL all components. TEST the system for normal operation.

  6. D6 CHECK CIRCUIT 224 (TN/WH) FOR A SHORT TO GROUND
    • Disconnect: Powertrain Control Module (PCM) C175b.
    • Measure the resistance between transmission control (TC) switch C279-2 and ground.
      Fig 5: Checking Circuit 224 (TN/WH) For Short To Ground
      G04706542
    • Is the resistance greater than 10,000 ohms?

    Yes  : INSTALL a new PCM. RECONNECT all components. TEST the system for normal operation.

    No  : REPAIR circuit 224 (TN/WH). RECONNECT all components. TEST the system for normal operation.

  7. D7 CHECK CIRCUIT 224 (TN/WH) FOR AN OPEN
    • Disconnect: Powertrain Control Module (PCM) C175b.
    • Measure the resistance between transmission control (TC) C279-2 and PCM C175b-27.
      Fig 6: Checking Circuit 224 (TN/WH) For Open
      G04706543
    • Is the resistance less than 5 ohms?

    Yes  : INSTALL a new PCM. RECONNECT all components. TEST the system for normal operation.

    No  : REPAIR circuit 224 (TN/WH). RECONNECT all components. TEST the system for normal operation.
