Home >> Lincoln >> 2006 >> Navigator 4WD >> Repair and Diagnosis >> Restraints >> Restraints Control Systems >> Safety Belt System >> Removal And Installation >> Safety Belt Shoulder Height Adjuster - Front Row >> Notes

Safety Belt Shoulder Height Adjuster - Front Row: Notes

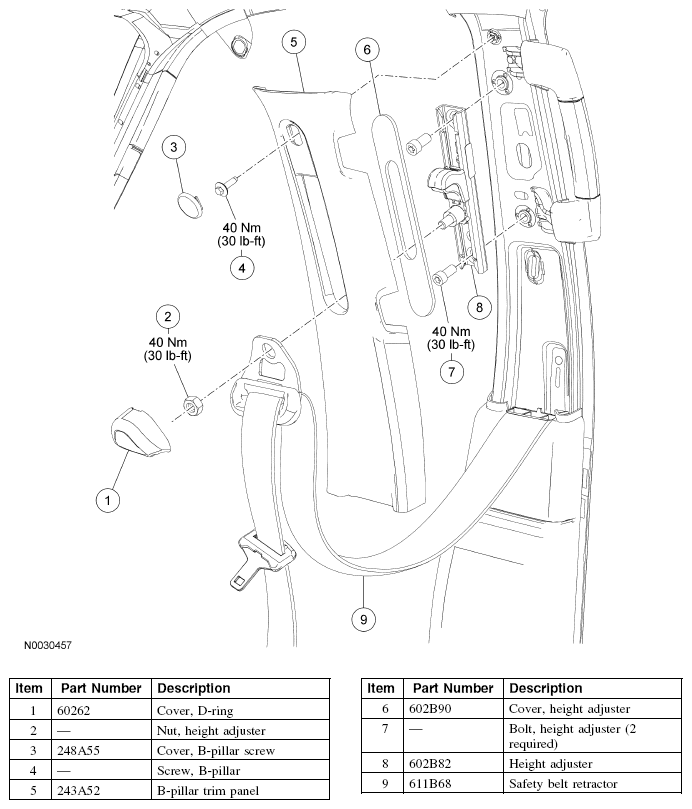

Fig 1: Safety Belt Shoulder Height Adjuster Replacement Components -- Front Row With Torque Specifications

G04631315

Courtesy of FORD MOTOR CO.
