Home >> Lincoln >> 2006 >> Navigator 4WD >> Repair and Diagnosis >> Restraints >> Restraints Control Systems >> Safety Belt System >> Removal And Installation >> Safety Belt Buckle - Front, Center >> Notes

Safety Belt Buckle - Front, Center: Notes

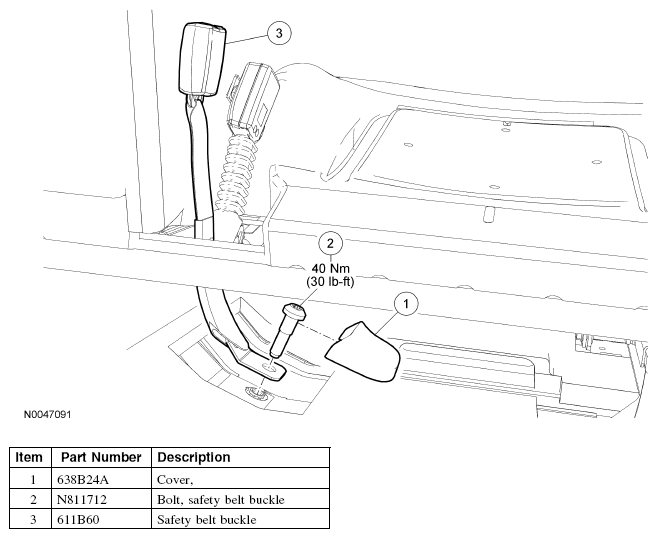

Fig 1: Safety Belt Buckle Replacement Components -- Front, Center With Torque Specifications

G04631317

Courtesy of FORD MOTOR CO.
