Removal and Installation

WARNING: This page is about a different car, the 2005 Lincoln Navigator and 2005 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

Remove the in-vehicle temperature and humidity sensor trim cover.

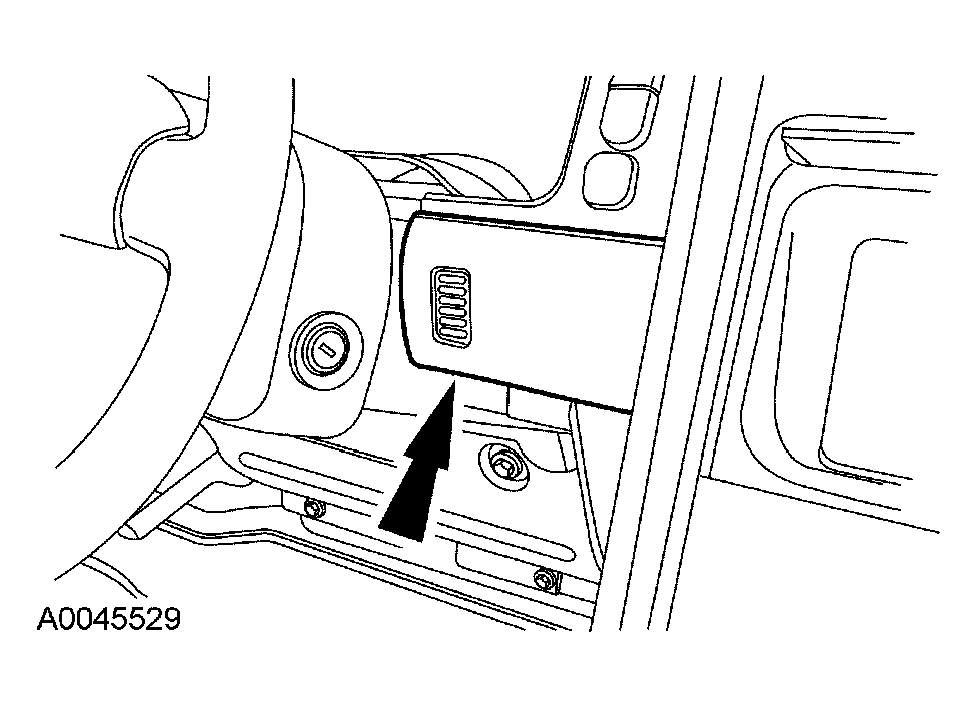

Fig 1: Removing In-Vehicle Temperature And Humidity Sensor Trim Cover
Courtesy of FORD MOTOR CO.
Disconnect the aspirator hose and the in-vehicle temperature and humidity sensor electrical connector.

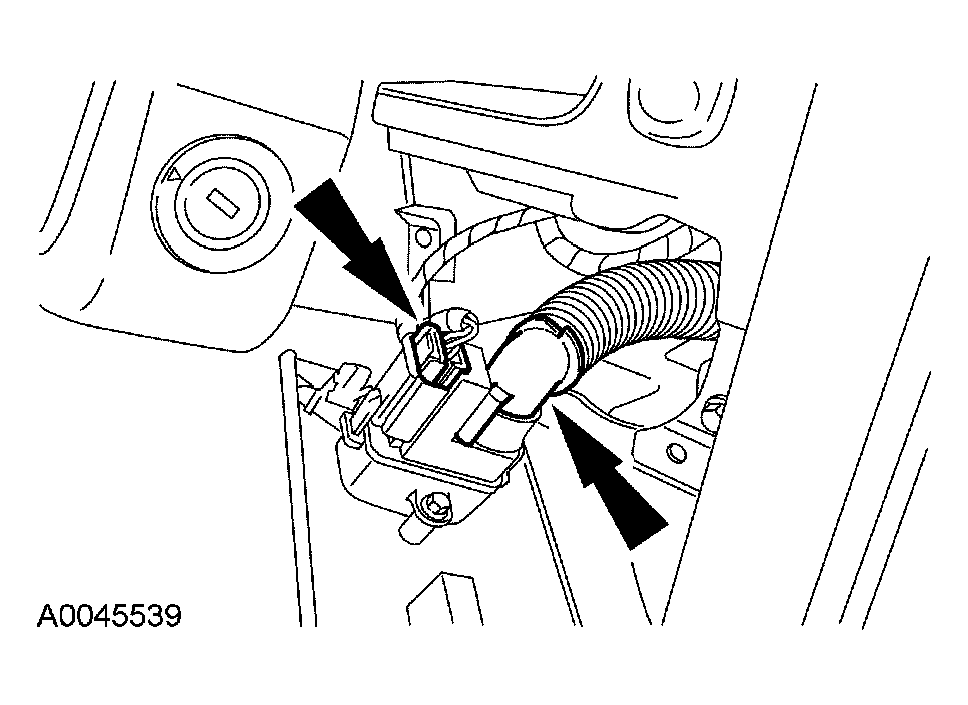

Fig 2: Disconnecting Aspirator Hose And In-Vehicle Temperature And Humidity Sensor Electrical Connector
Courtesy of FORD MOTOR CO.
Remove the screws and the in-vehicle temperature and humidity sensor.

Fig 3: Removing In-Vehicel Temperature & Humidity Sensor
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
