Removal and Installation

WARNING: This page is about a different car, the 2005 Lincoln Navigator and 2005 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the screws and the instrument cluster finish panel.
    • Disconnect the electrical connectors.

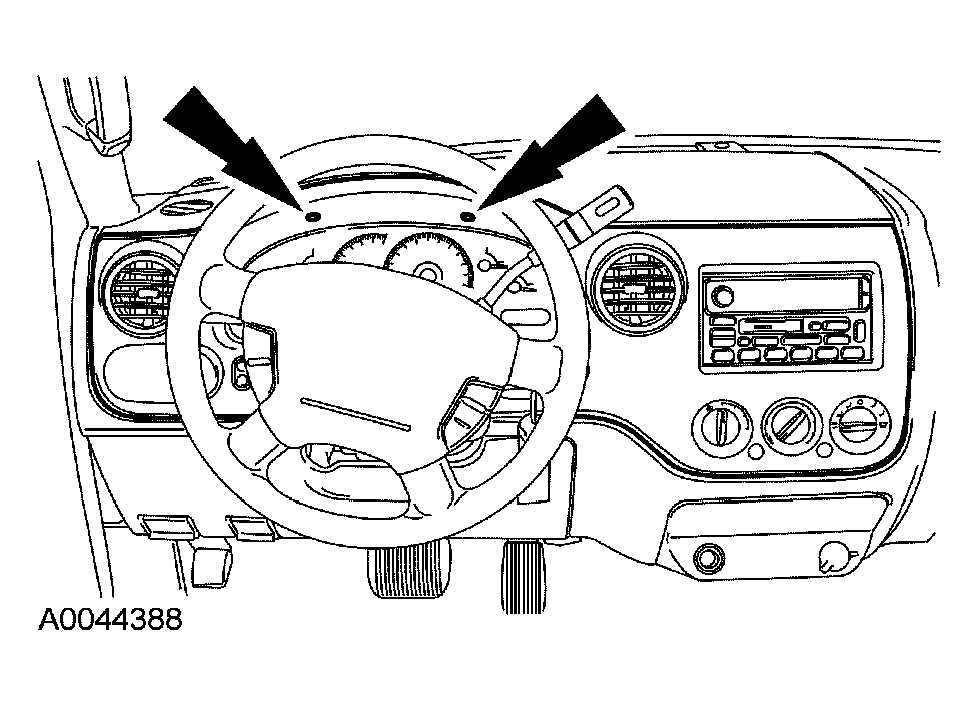

    Fig 1: Removing Screws And Instrument Cluster Finish Panel
    G03930639Courtesy of FORD MOTOR CO.
  2. Disconnect the aspirator hose and the in-vehicle temperature sensor electrical connector.

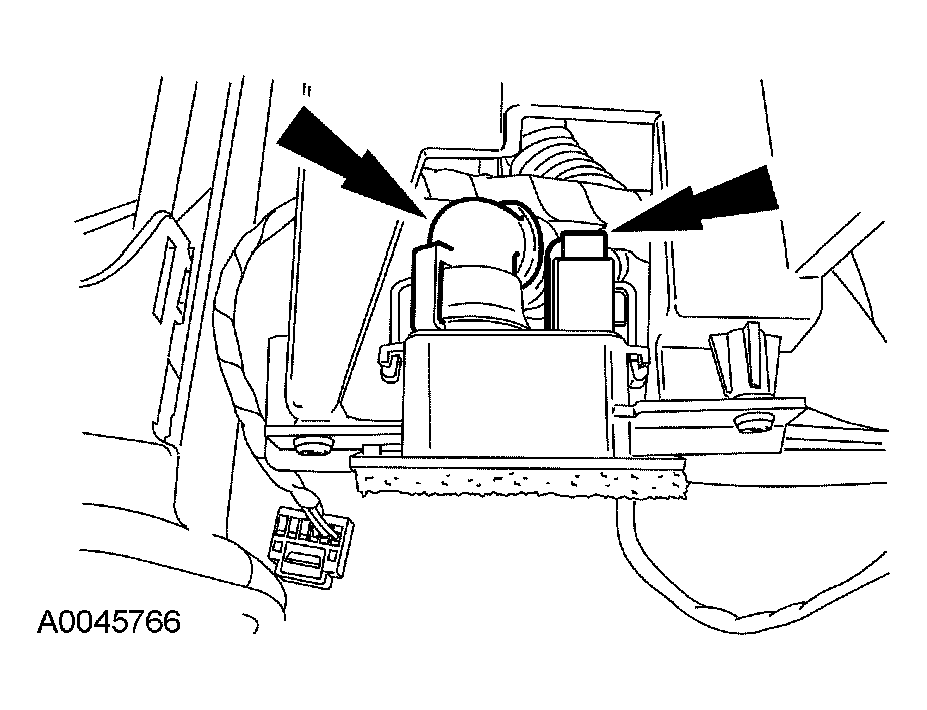

    Fig 2: Disconnecting Aspirator Hose And In-Vehicle Temperature Sensor Electrical Connector
    G03930647Courtesy of FORD MOTOR CO.
  3. Remove the screws and the in-vehicle temperature sensor.

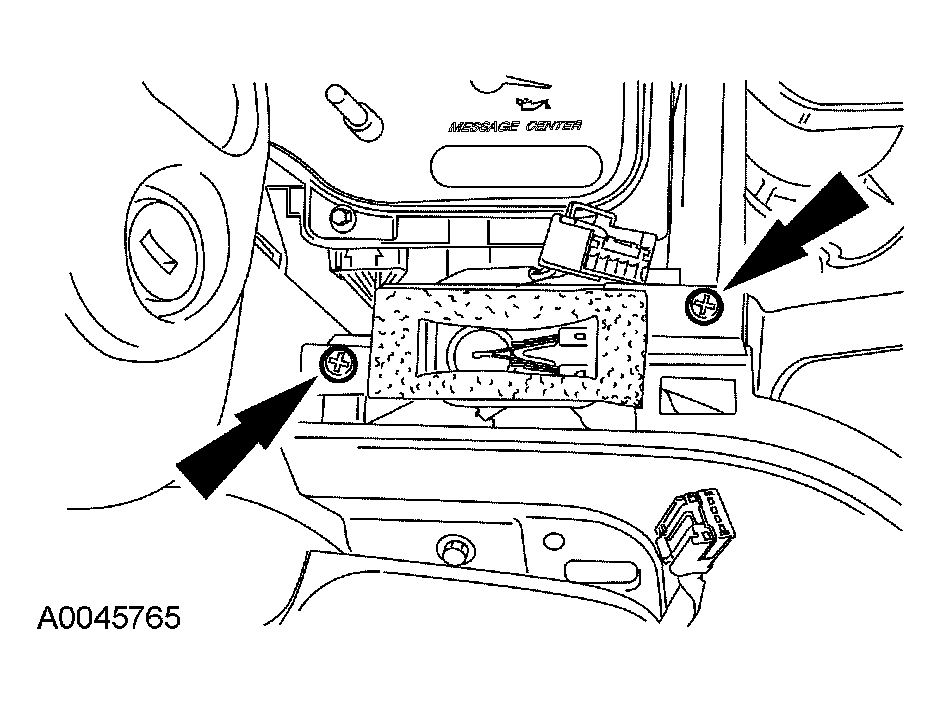

    Fig 3: Removing Screws And In-Vehicle Temperature Sensor
    G03930648Courtesy of FORD MOTOR CO.
  4. To install, reverse the removal procedure.
