Home >> Lincoln >> 2006 >> LS >> Repair and Diagnosis >> Heating, Ventilation & A/C (HVAC) >> HVAC Control Systems >> Climate Control >> Removal And Installation >> Dual Coolant Flow Valve >> Notes

Dual Coolant Flow Valve: Notes

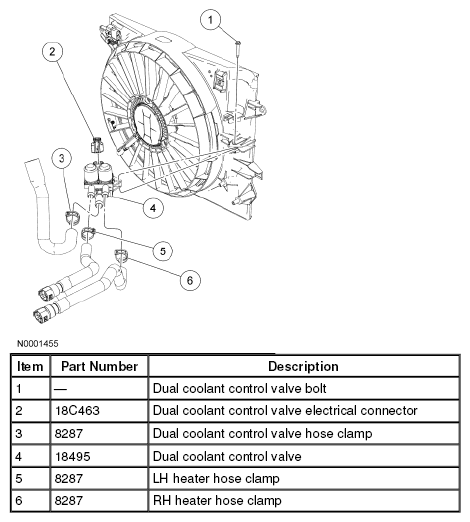

Fig 1: Identifying Dual Coolant Flow Valve Components

G04692135
