Lifting Points-Frame Contact Lift, Single-Post Lift, Two-Post Lift

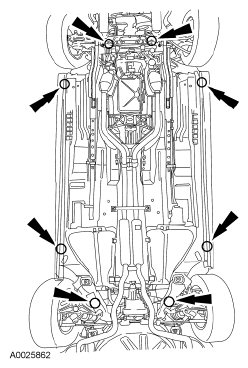

Fig 1: Lifting Points - Frame Contact Lift, Single-Post Lift, Two-Post Lift

Courtesy of FORD MOTOR CO.

CAUTION: Under no circumstances should the vehicle be lifted by the front control arms, front I-braces or rear control arms. Severe damage to the vehicle could result.

CAUTION: Do not position the lift pads under the No. 3 crossmember.

NOTE: Adapters maybe necessary to clear vehicle components to lift the vehicle safely. The adapters must be placed at the four designated contact points. Position the adapters so they are centered on the adapter contact area.

Lift the vehicle at the applicable lift points.
