Fuel Rail and Fuel Injector - Exploded View

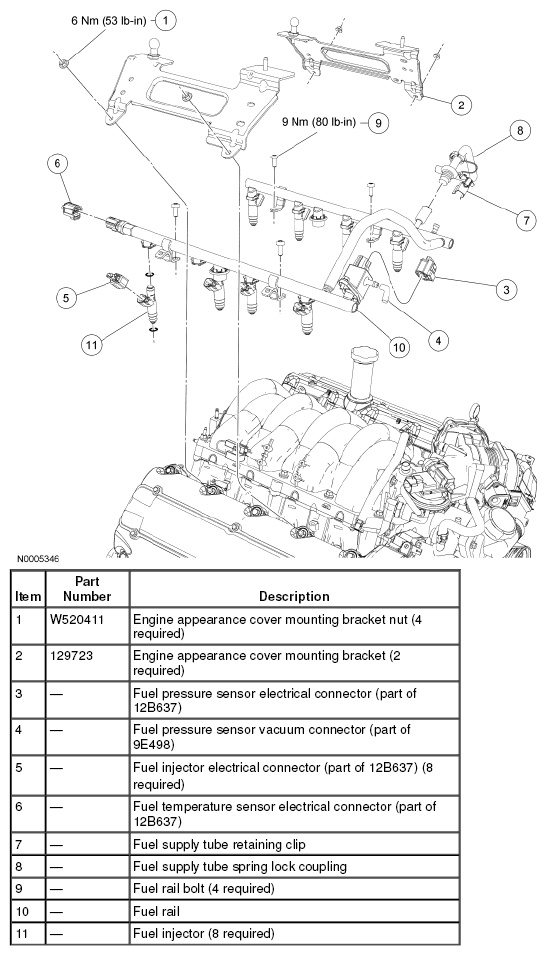

Fig 1: Exploded View Of Fuel Rail And Fuel Injector With Torque Specifications
G04690997Courtesy of FORD MOTOR CO.
  1. For additional information, refer to appropriate procedure.
