Removal and Installation

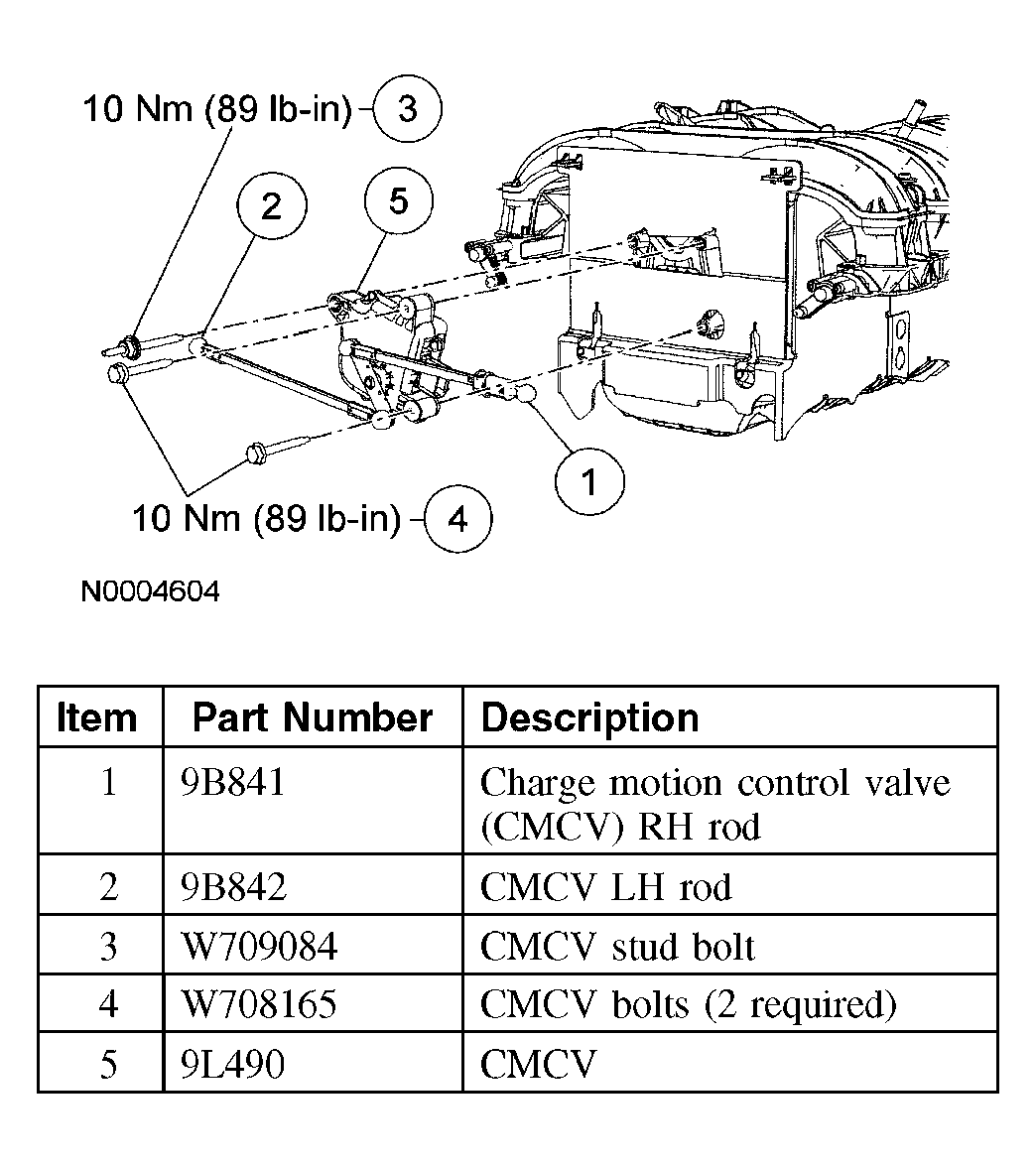

Fig 1: Removing/Installing Charge Motion Control Valve (CMCV)
G03929100Courtesy of FORD MOTOR CO.
  1. Remove the intake manifold. For additional information, refer to ENGINE .
  2. Disconnect the charge motion control valve (CMCV) RH and LH rods from the intake manifold.
  3. Remove the stud bolt, the 2 bolts and the CMCV.
    • To install, tighten to 10 Nm (89 lb-in).
  4. To install, reverse the removal procedure.
