Transmission Support Insulator - 4x4: Removal

  1. With the vehicle in NEUTRAL, position on a hoist. For additional information, refer to JACKING & LIFTING .
  2. Support the transmission with a transmission jack.
  3. Remove the 2 nuts from the rear transmission support.
    Fig 1: Removing 2 Nuts From Rear Transmission Support
    G03863291Courtesy of FORD MOTOR CO.
  4. Remove the 2 bolts and remove the rear transmission support.

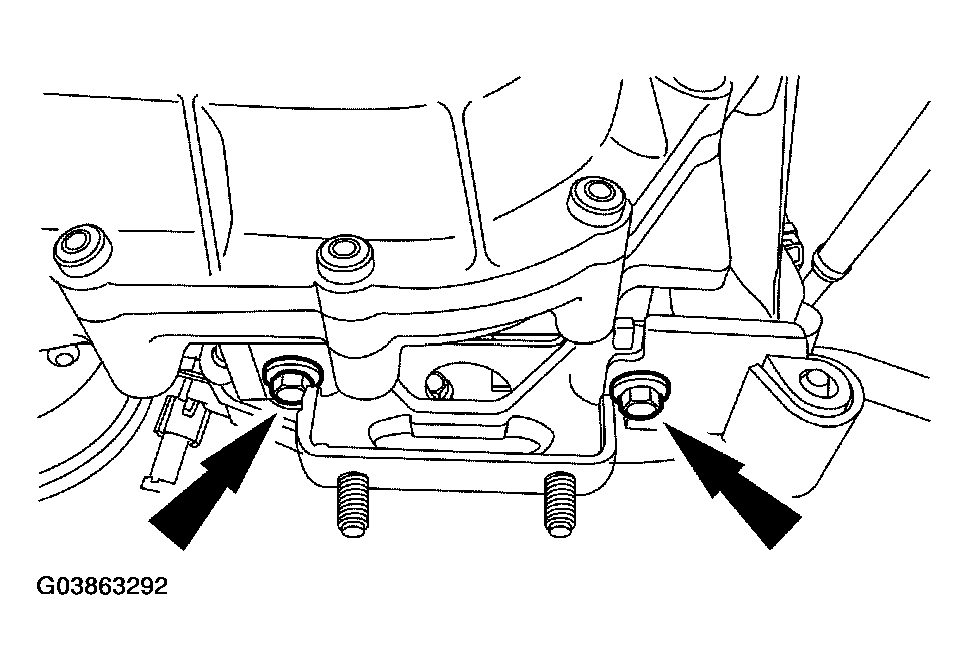

    Fig 2: Removing Rear Transmission Support
    G03863292Courtesy of FORD MOTOR CO.
