Forward Clutch Assembly Component Locations

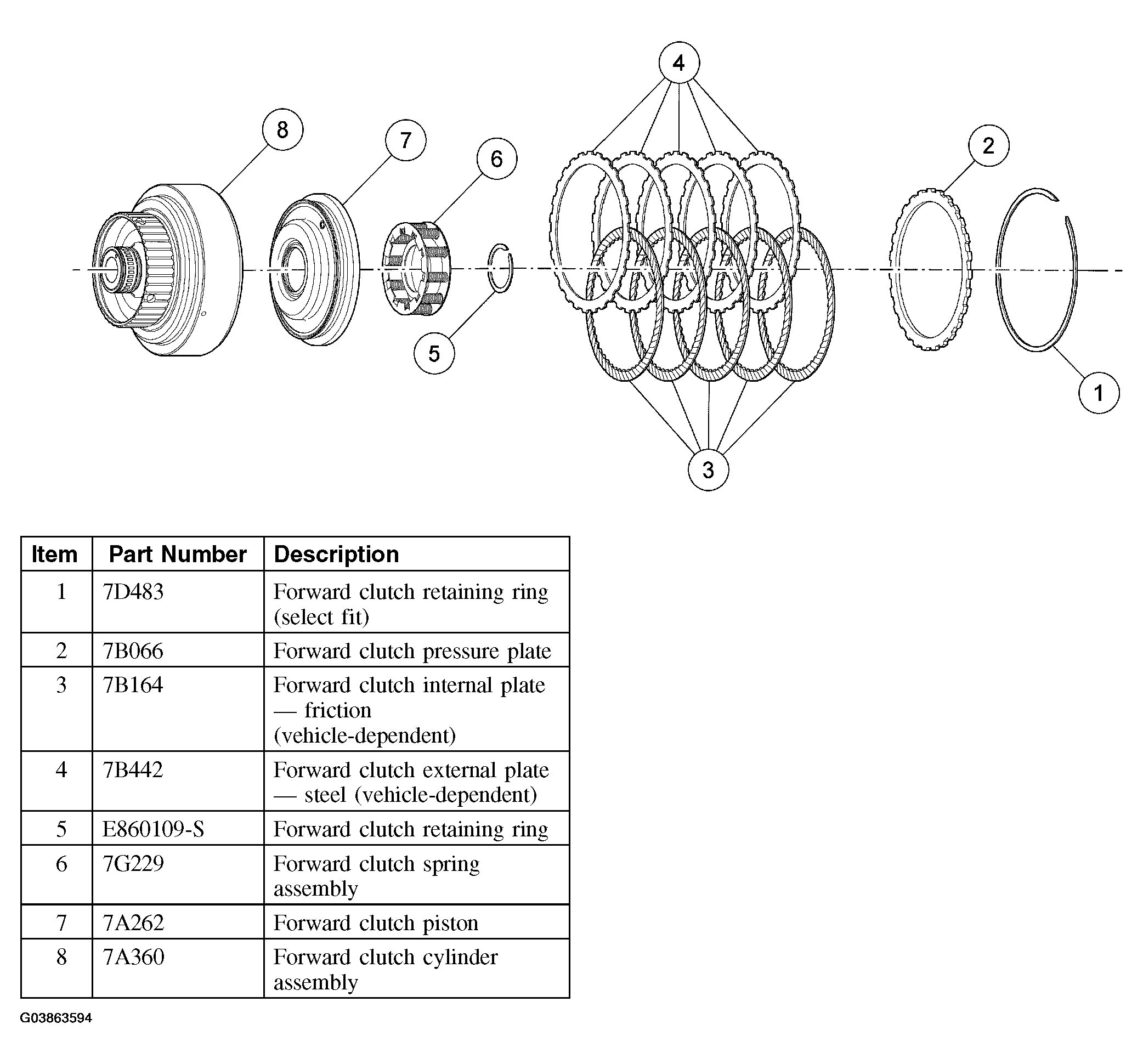

Fig 1: Identifying Forward Clutch Assembly

G03863594

Courtesy of FORD MOTOR CO.
