Special Tool(s)

SPECIAL TOOL(S) CHART

Tool Number Illustration Description
ST1190-A
G03863572Courtesy of FORD MOTOR CO.
 Compressor, Clutch Spring 307-015 (T65L-77515-A)
ST2431-A

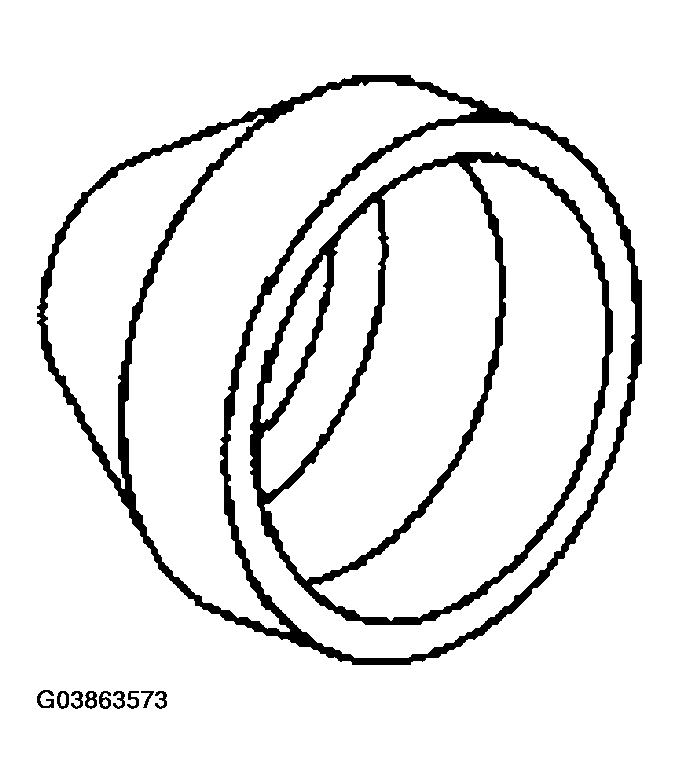

G03863573Courtesy of FORD MOTOR CO.
 Protector, Piston Seal 307-049 (T74P-77404-A)
